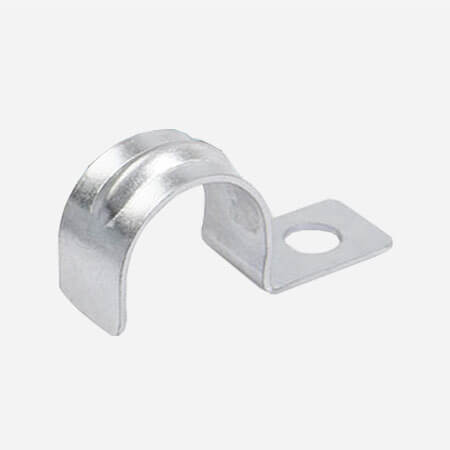

1 Hole Conduit Straps
- PRODUCT DETAIL
Usage:
1 hole conduit straps are widely used in wire and cable protection industry, to fix and hold the flexible conduit and rigid conduit.
Type Show:

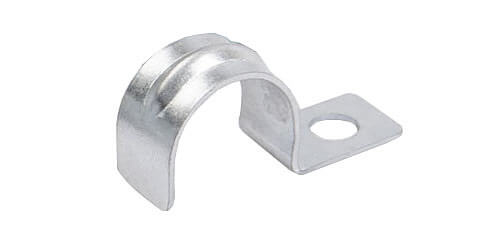

1 hole conduit straps show
Size Chart:
|
Part No.
|
Matched Conduit OD(mm)
|
Width(mm)
|
Thickness(mm)
|
Hole Diameter(mm)
|
|
FG-DBKG-DN4
|
4
|
9.7
|
0.8
|
5.2
|
|
FG-DBKG-DN6
|
6
|
9.7
|
0.8
|
5.2
|
|
FG-DBKG-DN8
|
8
|
9.7
|
0.8
|
5.2
|
|
FG-DBKG-DN10
|
10
|
9.7
|
0.8
|
5.2
|
|
FG-DBKG-DN12
|
12
|
9.7
|
0.8
|
5.2
|
|
FG-DBKG-DN14
|
14
|
9.7
|
0.8
|
5.2
|
|
FG-DBKG-DN16
|
16
|
15
|
1.0
|
6.4
|
|
FG-DBKG-DN18
|
18
|
15
|
1.0
|
6.4
|
|
FG-DBKG-DN20
|
20
|
15
|
1.2
|
6.4
|
|
FG-DBKG-DN25
|
25
|
20
|
1.2
|
8.4
|
|
FG-DBKG-DN32
|
32
|
20
|
1.2
|
8.4
|
|
FG-DBKG-DN40
|
40
|
20
|
1.5
|
8.4
|
|
FG-DBKG-DN50
|
50
|
20
|
1.5
|
8.4
|
Custom Service:
1 hole conduit straps custom service is workable for us. Like material, packing quantity, packages, logo etc.
