Adhesive Heat Shrink Tubing
- PRODUCT DETAIL
Usage:
Adhesive lined heat shrink tubing also called dual wall heat shrink tubing. It is widely used in electronic facilities wiring system. Especially in the requirements of waterproof, repairment of wire and cables, wire connections and other industrial field. We have two kinds adhesive lined heat shrink tubing, and shrink ratio is 3:1 and 4:1. You can find sizes are as below.
Structure:

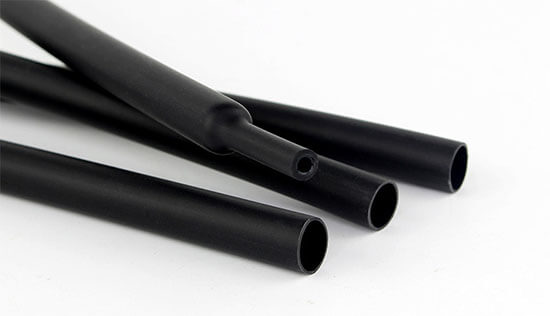

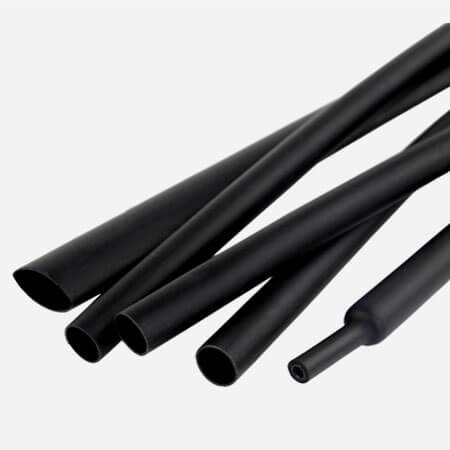

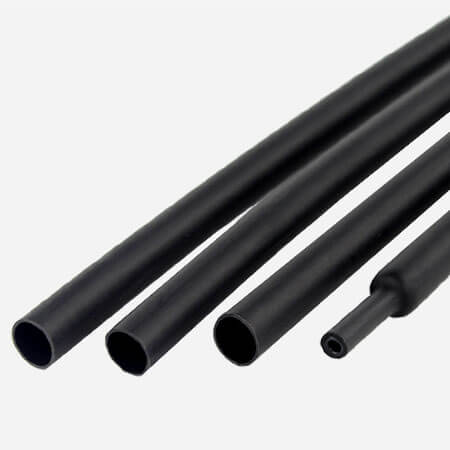

adhesive lined heat shrink tubing show

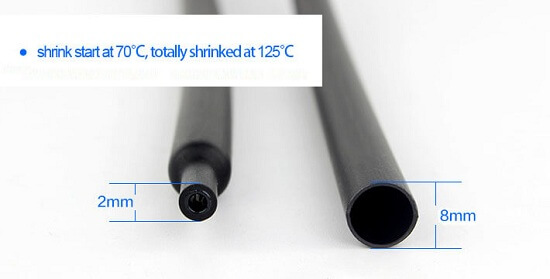

4:1 adhesive lined heat shrink tubing

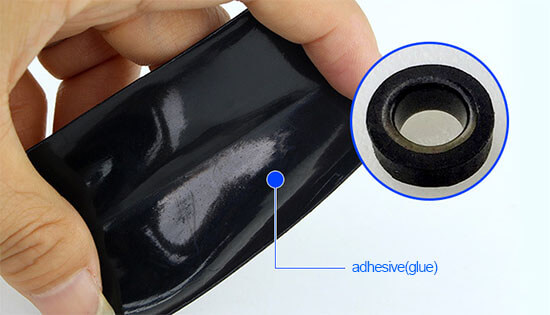

adhesive lined heat shrink tubing adhesive(glue) show
Size Chart:
3:1 Specification:
|
Part No.
|
Inch Size
|
Before Shrink
|
Shrink After
|
Adhesive Thickness
|
Packing Unit
|
|
|
ID
|
ID
|
Thickness
|
||||
|
FG-DWHST3-2.4
|
3/32″
|
2.4
|
0.8
|
0.85
|
0.35
|
200m/roll
|
|
FG-DWHST3-3.2
|
1/8″
|
3.2
|
1.0
|
1.0
|
0.40
|
200m/roll
|
|
FG-DWHST3-4.8
|
3/16″
|
4.8
|
1.6
|
1.1
|
0.40
|
100m/roll
|
|
FG-DWHST3-6.4
|
1/4″
|
6.4
|
2.0
|
1.2
|
0.50
|
100m/roll
|
|
FG-DWHST3-7.9
|
5/16″
|
7.9
|
2.7
|
1.4
|
0.50
|
100m/roll
|
|
FG-DWHST3-9.5
|
3/8″
|
9.5
|
3.2
|
1.4
|
0.50
|
50m/roll
|
|
FG-DWHST3-12.7
|
1/2″
|
12.7
|
4.2
|
1.7
|
0.60
|
1.22m/pcs
|
|
FG-DWHST3-15.0
|
5/8″
|
15.0
|
5.0
|
1.8
|
0.60
|
1.22m/pcs
|
|
FG-DWHST3-19.1
|
3/4″
|
19.1
|
6.3
|
2.0
|
0.60
|
1.22m/pcs
|
|
FG-DWHST3-25.4
|
1″
|
25.4
|
8.5
|
2.1
|
0.60
|
1.22m/pcs
|
|
FG-DWHST3-30.0
|
1-1/4″
|
30.0
|
10.2
|
2.2
|
0.70
|
1.22m/pcs
|
|
FG-DWHST3-39.0
|
1-1/2″
|
39.0
|
13.5
|
2.4
|
0.70
|
1.22m/pcs
|
|
FG-DWHST3-50.0
|
2″
|
50.0
|
17.0
|
2.7
|
0.70
|
1.22m/pcs
|
|
FG-DWHST3-64.0
|
2-1/2″
|
64.0
|
21.0
|
3.0
|
0.70
|
1.22m/pcs
|
|
FG-DWHST3-75.0
|
3″
|
75.0
|
25.0
|
3.2
|
1.0
|
1.22m/pcs
|
|
FG-DWHST3-90.0
|
3-1/2″
|
90.0
|
30.0
|
3.3
|
1.0
|
1.22m/pcs
|
|
FG-DWHST3-100.0
|
4″
|
100.0
|
34.0
|
3.5
|
1.2
|
1.22m/pcs
|
|
FG-DWHST3-125.0
|
5″
|
125.0
|
42.0
|
3.5
|
1.2
|
1.22m/pcs
|
4:1 Specification:
|
Part No.
|
Inch Size
|
Before Shrink
|
Shrink After
|
Adhesive Thickness
|
Packing Unit
|
|
|
ID
|
ID
|
Thickness
|
||||
|
FG-DWHST4-4.0
|
2/13″
|
4.0
|
1.0
|
1.0
|
0.4
|
200m/roll
|
|
FG-DWHST4-6.0
|
1/4″
|
6.0
|
1.5
|
1.1
|
0.4
|
100m/roll
|
|
FG-DWHST4-8.0
|
5/16″
|
8.0
|
2.0
|
1.5
|
0.5
|
50m/roll
|
|
FG-DWHST4-12.0
|
1/2″
|
12.0
|
3.0
|
1.7
|
0.5
|
1.22m/pcs
|
|
FG-DWHST4-16.0
|
5/8″
|
16.0
|
4.0
|
2.0
|
0.5
|
1.22m/pcs
|
|
FG-DWHST4-20.0
|
15/19″
|
20.0
|
5.0
|
2.3
|
0.6
|
1.22m/pcs
|
|
FG-DWHST4-24.0
|
1″
|
24.0
|
6.0
|
2.5
|
0.6
|
1.22m/pcs
|
|
FG-DWHST4-32.0
|
1-1/4″
|
32.0
|
8.0
|
2.8
|
0.7
|
1.22m/pcs
|
|
FG-DWHST4-52.0
|
2″
|
52.0
|
13.0
|
3.0
|
0.7
|
1.22m/pcs
|
Custom Service:
Adhesive lined heat shrink tubing custom service is workable for us. Like color, packing quantity, packages, logo etc.
