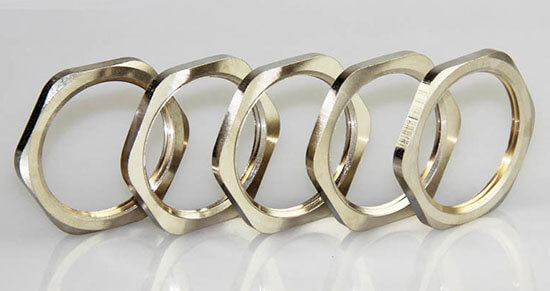

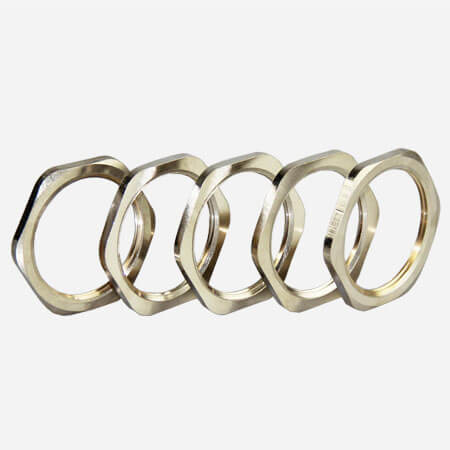

Cable Gland Locknut
- PRODUCT DETAIL
Usage:
Metal cable gland locknut are matched with brass cable glands or EMC cable glands. They are widely used in wire and cable managements. And it can also resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
Structure:
cable gland locknut show
Size Chart:
Metric Thread
|
Thread
|
Part No.
|
Thickness(mm)
|
Spanner(mm)
|
|
M12*1.5
|
FG-LNM12
|
3
|
14
|
|
M14*1.5
|
FG-LNM14
|
3
|
17
|
|
M16*1.5
|
FG-LNM16
|
3
|
18
|
|
M18*1.5
|
FG-LNM18
|
3
|
20
|
|
M20*1.5
|
FG-LNM20
|
3
|
22
|
|
M22*1.5
|
FG-LNM22
|
3.2
|
24
|
|
M24*1.5
|
FG-LNM24
|
3.5
|
27
|
|
M25*1.5
|
FG-LNM25
|
3.5
|
27
|
|
M27*1.5
|
FG-LNM27
|
4
|
30
|
|
M30*1.5
|
FG-LNM30
|
4
|
32
|
|
M32*1.5
|
FG-LNM32
|
4
|
35
|
|
M33*1.5
|
FG-LNM33
|
4
|
36
|
|
M36*1.5
|
FG-LNM36
|
4
|
40
|
|
M37*1.5
|
FG-LNM37
|
4
|
40
|
|
M40*1.5
|
FG-LNM40
|
4.5
|
45
|
|
M42*1.5
|
FG-LNM42
|
5
|
45
|
|
M47*1.5
|
FG-LNM47
|
5.5
|
50
|
|
M48*1.5
|
FG-LNM48
|
5.5
|
52
|
|
M50*1.5
|
FG-LNM50
|
5.5
|
55
|
|
M54*1.5
|
FG-LNM54
|
5.5
|
57
|
|
M60*1.5
|
FG-LNM60
|
6
|
64
|
|
M63*1.5
|
FG-LNM63
|
6
|
68
|
|
M64*2
|
FG-LNM64
|
6
|
68
|
|
M72*2
|
FG-LNM72
|
8.5
|
78
|
|
M75*2
|
FG-LNM75
|
8.5
|
78
|
|
M80*2
|
FG-LNM80
|
9
|
88
|
|
M88*2
|
FG-LNM88
|
9
|
94
|
|
M100*2
|
FG-LNM100
|
9
|
110
|
PG Thread
|
Thread
|
Part No.
|
Thickness(mm)
|
Spanner(mm)
|
|
PG7
|
FG-LNPG7
|
3
|
15
|
|
PG9
|
FG-LNPG9
|
3
|
18
|
|
PG11
|
FG-LNPG11
|
3
|
21
|
|
PG13.5
|
FG-LNPG13.5
|
3
|
23
|
|
PG16
|
FG-LNPG16
|
3.2
|
25
|
|
PG19
|
FG-LNPG19
|
3.5
|
27
|
|
PG21
|
FG-LNPG21
|
4
|
30
|
|
PG25
|
FG-LNPG25
|
4
|
35
|
|
PG29
|
FG-LNPG29
|
4
|
40
|
|
PG36
|
FG-LNPG36
|
5.5
|
50
|
|
PG42
|
FG-LNPG42
|
6
|
57
|
|
PG48
|
FG-LNPG48
|
6.5
|
64
|
|
PG63
|
FG-LNPG63
|
8.5
|
78
|
G Thread
|
Thread
|
Part No.
|
Thickness(mm)
|
Spanner(mm)
|
|
G1/2
|
FG-LNG1/2
|
3
|
23
|
|
G3/4
|
FG-LNG3/4
|
4
|
30
|
|
G1
|
FG-LNG1
|
4
|
40
|
|
G1-1/4
|
FG-LNG1-1/4
|
5.5
|
50
|
|
G1-1/2
|
FG-LNG1-1/2
|
5.5
|
57
|
|
G2
|
FG-LNG2
|
6
|
64
|
|
G2-1/2
|
FG-LNG2-1/2
|
8.5
|
78
|
|
G3
|
FG-LNG3
|
9
|
94
|
NPT Thread
|
Thread
|
Part No.
|
Thickness(mm)
|
Spanner(mm)
|
|
NPT1/2
|
FNPT-LNPT1/2
|
3
|
23
|
|
NPT3/4
|
FNPT-LNPT3/4
|
4
|
30
|
|
NPT1
|
FNPT-LNPT1
|
4
|
40
|
|
NPT1-1/4
|
FNPT-LNPT1-1/4
|
5.5
|
50
|
|
NPT1-1/2
|
FNPT-LNPT1-1/2
|
5.5
|
57
|
|
NPT2
|
FNPT-LNPT2
|
6
|
64
|
|
NPT2-1/2
|
FNPT-LNPT2-1/2
|
8.5
|
78
|
|
NPT3
|
FNPT-LNPT3
|
9
|
94
|
Custom Service:
cable gland locknut custom service is workable for us. Like EMC, materials, packing quantity, packages, logo etc.
