Corrugated Flexible Conduit
- PRODUCT DETAIL
Usage:
Corrugated flexible conduit is widely used in wire and cable protection. General material is PA(nylon), PP(polypropylene) and PE(polyethylene) are also workable for us. Compare other two materials, Nylon corrugated flexible conduit is the most widely used flexible conduit in the world, because it’s good hardness and appearance.
Structure:

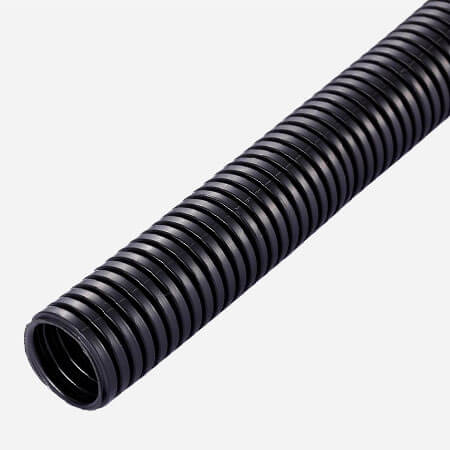

corrugated flexible conduit outside and inside like wave

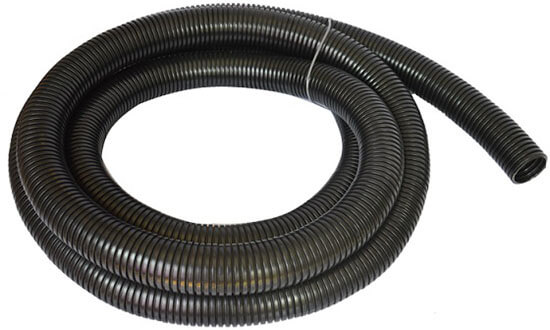

corrugated flexible conduit
Size Chart:
|
Part No.
|
AD Details
|
ID*OD(mm)
|
Bending Radius(mm)
|
Packing Quantity(m)
|
|
|
FG-PA-7.0
|
AD7.0
|
4.5*7.0
|
12
|
200
|
|
|
FG-PA-10.0
|
AD10.0
|
1/4″
|
6.5*10.0
|
16
|
100
|
|
FG-PA-11.6
|
AD11.6
|
8.6*11.6
|
16
|
100
|
|
|
FG-PA-13.0
|
AD13.0
|
5/16″
|
10.0*13.0
|
20
|
100
|
|
FG-PA-14.0
|
AD14.0
|
11.0*14.0
|
25
|
100
|
|
|
FG-PA-15.8
|
AD15.8
|
3/8″
|
12.0*15.8
|
30
|
100
|
|
FG-PA-18.5
|
AD18.5
|
14.3*18.5
|
40
|
100
|
|
|
FG-PA-20.0
|
AD20.0
|
16.0*20.0
|
45
|
100
|
|
|
FG-PA-21.2
|
AD21.2
|
1/2″
|
17.0*21.2
|
45
|
100
|
|
FG-PA-25.0
|
AD25.0
|
20.0*25.0
|
45
|
100
|
|
|
FG-PA-28.5
|
AD28.5
|
3/4″
|
23.0*28.5
|
50
|
100
|
|
FG-PA-32.0
|
AD32.0
|
25.0*32.0
|
55
|
50
|
|
|
FG-PA-34.5
|
AD34.5
|
1″
|
29.0*34.5
|
60
|
50
|
|
FG-PA-42.5
|
AD42.5
|
1-1/4″
|
36.0*42.5
|
70
|
25
|
|
FG-PA-54.5
|
AD54.5
|
2″
|
48.0*54.5
|
90
|
25
|
|
FG-PA-67.2
|
AD67.2
|
2-1/2″
|
56.3*67.2
|
130
|
25
|
|
FG-PA-80.0
|
AD80.0
|
3″
|
66.5*80.0
|
170
|
20
|
|
FG-PA-106.0
|
AD106.0
|
4″
|
91.0*106.0
|
225
|
20
|
Custom Service:
Corrugated flexible conduit custom service is workable for us. Like color, materials, packing quantity, packages, logo etc.
Packages:
corrugated flexible conduit warehouse
