Dual Wall Heat Shrink Tubing
- PRODUCT DETAIL
Usage:
Dual wall heat shrink tubing is widely used in electronic facilities wiring system. Especially in the requirements of waterproof, repairment of wire and cables, wire connections and other industrial field. We have two kinds dual wall heat shrink tubing, and shrink ratio is 3:1 and 4:1.
Structure:

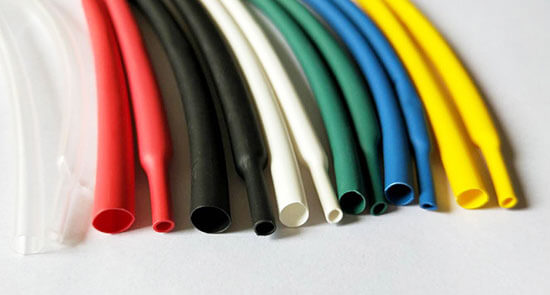

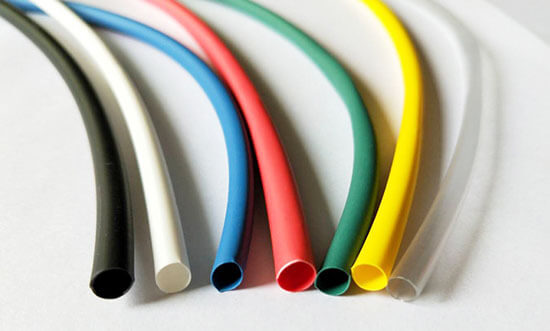

dual wall heat shrink tubing colors

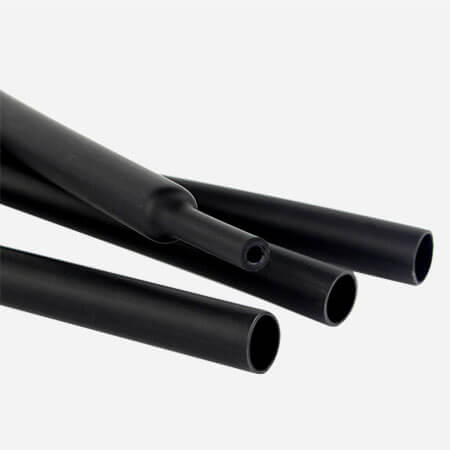

dual wall heat shrink tubing and shrinked dual wall heat shrink tubing

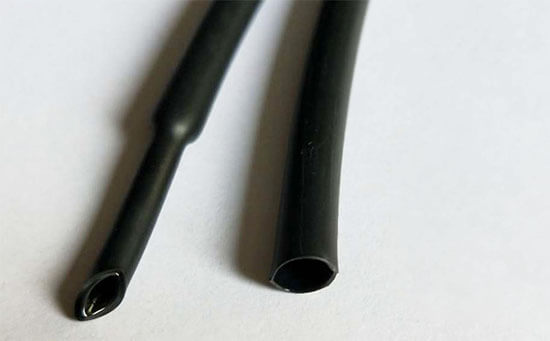

dual wall heat shrink tubing and shrinked dual wall heat shrink tubing

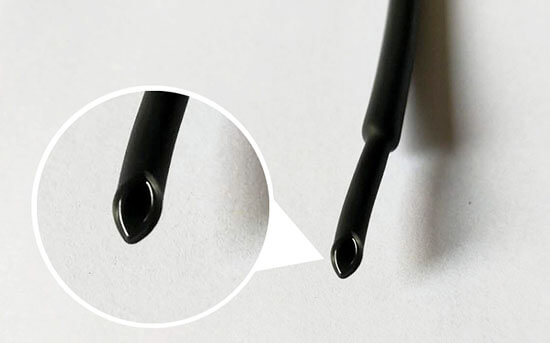

shrinked dual wall heat shrink tubing adhesive details show
Size Chart:
3:1 Specification:
|
Part No.
|
Inch Size
|
Before Shrink
|
Shrink After
|
Adhesive Thickness
|
Packing Unit
|
|
|
ID
|
ID
|
Thickness
|
||||
|
FG-DWHST3-2.4
|
3/32″
|
2.4
|
0.8
|
0.85
|
0.35
|
200m/roll
|
|
FG-DWHST3-3.2
|
1/8″
|
3.2
|
1.0
|
1.0
|
0.40
|
200m/roll
|
|
FG-DWHST3-4.8
|
3/16″
|
4.8
|
1.6
|
1.1
|
0.40
|
100m/roll
|
|
FG-DWHST3-6.4
|
1/4″
|
6.4
|
2.0
|
1.2
|
0.50
|
100m/roll
|
|
FG-DWHST3-7.9
|
5/16″
|
7.9
|
2.7
|
1.4
|
0.50
|
100m/roll
|
|
FG-DWHST3-9.5
|
3/8″
|
9.5
|
3.2
|
1.4
|
0.50
|
50m/roll
|
|
FG-DWHST3-12.7
|
1/2″
|
12.7
|
4.2
|
1.7
|
0.60
|
1.22m/pcs
|
|
FG-DWHST3-15.0
|
5/8″
|
15.0
|
5.0
|
1.8
|
0.60
|
1.22m/pcs
|
|
FG-DWHST3-19.1
|
3/4″
|
19.1
|
6.3
|
2.0
|
0.60
|
1.22m/pcs
|
|
FG-DWHST3-25.4
|
1″
|
25.4
|
8.5
|
2.1
|
0.60
|
1.22m/pcs
|
|
FG-DWHST3-30.0
|
1-1/4″
|
30.0
|
10.2
|
2.2
|
0.70
|
1.22m/pcs
|
|
FG-DWHST3-39.0
|
1-1/2″
|
39.0
|
13.5
|
2.4
|
0.70
|
1.22m/pcs
|
|
FG-DWHST3-50.0
|
2″
|
50.0
|
17.0
|
2.7
|
0.70
|
1.22m/pcs
|
|
FG-DWHST3-64.0
|
2-1/2″
|
64.0
|
21.0
|
3.0
|
0.70
|
1.22m/pcs
|
|
FG-DWHST3-75.0
|
3″
|
75.0
|
25.0
|
3.2
|
1.0
|
1.22m/pcs
|
|
FG-DWHST3-90.0
|
3-1/2″
|
90.0
|
30.0
|
3.3
|
1.0
|
1.22m/pcs
|
|
FG-DWHST3-100.0
|
4″
|
100.0
|
34.0
|
3.5
|
1.2
|
1.22m/pcs
|
|
FG-DWHST3-125.0
|
5″
|
125.0
|
42.0
|
3.5
|
1.2
|
1.22m/pcs
|
4:1 Specification:
|
Part No.
|
Inch Size
|
Before Shrink
|
Shrink After
|
Adhesive Thickness
|
Packing Unit
|
|
|
ID
|
ID
|
Thickness
|
||||
|
FG-DWHST4-4.0
|
2/13″
|
4.0
|
1.0
|
1.0
|
0.4
|
200m/roll
|
|
FG-DWHST4-6.0
|
1/4″
|
6.0
|
1.5
|
1.1
|
0.4
|
100m/roll
|
|
FG-DWHST4-8.0
|
5/16″
|
8.0
|
2.0
|
1.5
|
0.5
|
50m/roll
|
|
FG-DWHST4-12.0
|
1/2″
|
12.0
|
3.0
|
1.7
|
0.5
|
1.22m/pcs
|
|
FG-DWHST4-16.0
|
5/8″
|
16.0
|
4.0
|
2.0
|
0.5
|
1.22m/pcs
|
|
FG-DWHST4-20.0
|
15/19″
|
20.0
|
5.0
|
2.3
|
0.6
|
1.22m/pcs
|
|
FG-DWHST4-24.0
|
1″
|
24.0
|
6.0
|
2.5
|
0.6
|
1.22m/pcs
|
|
FG-DWHST4-32.0
|
1-1/4″
|
32.0
|
8.0
|
2.8
|
0.7
|
1.22m/pcs
|
|
FG-DWHST4-52.0
|
2″
|
52.0
|
13.0
|
3.0
|
0.7
|
1.22m/pcs
|
Custom Service:
Dual wall heat shrink tubing custom service is workable for us. Like color, packing quantity, packages, logo etc.
