Internal Thread Quick Connectors

Materials: Polyamide(PA66)



Colors: Black or Grey, others for custom service



Working Temperature: -40℃ ~ +120℃



Protection Level: IP66



Payment Term: Paypal, T/T, Western Union etc.

  • PRODUCT DETAIL

Usage:

Internal thread quick connectors are a kind of plastic quick connector. They are difference from the general type. It thread is female thread. It is used to connect plastic flexible conduit with others. It is widely used in wire and cable protection industry.

Furthermore, we also produce plastic reducer and enlarger. They can be used to adjust quick connectors’ thread.

Structure:

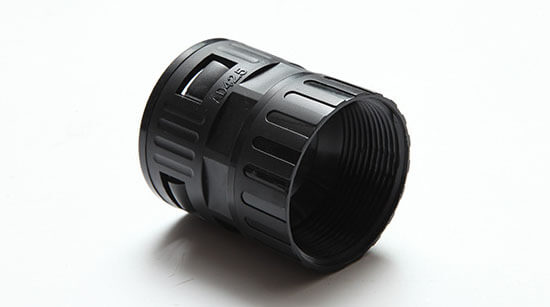

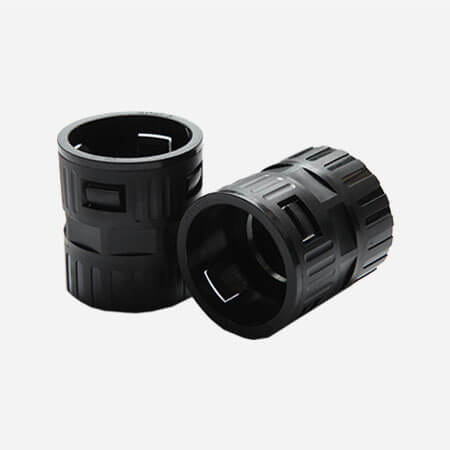

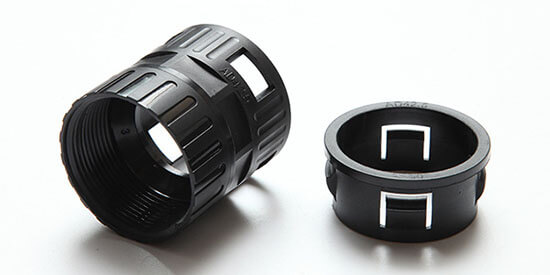

internal thread quick connectors show
internal thread quick connectors show

internal thread quick connectors show
internal thread quick connectors show

Size Chart:

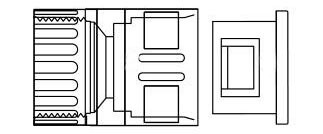

internal thread quick connectors structure

Part No.
Matched Conduit OD
Internal Thread
FG-ITQC-13
13mm(5/16″)
M16*1.5
FG-ITQC-15.8
15.8(3/8″)
M20*1.5
FG-ITQC-18.5
18.5
M22*1.5
FG-ITQC-21.2
21.2(1/2″)
M25*1.5
FG-ITQC-25.0
25.0
M30*1.5
FG-ITQC-28.5
28.5(3/4″)
M30*2
FG-ITQC-34.5
34.5(1″)
M37*2
FG-ITQC-42.5
42.5(1-1/4″)
M47*2

Custom Service:

Internal thread quick connectors custom service is workable for us. Like color, materials, packing quantity, packages, logo etc.
