Liquid Tight Flexible Conduit(interlocked)
- PRODUCT DETAIL
Usage:
Liquid tight flexible conduit is widely used in wire and cable protection. It’s inside is galvanized steel or stainless steel, and Rohs PVC coated outside. They are more durable than general flexible conduit. Also have a better waterproof, fireproof and acid & alkali resistance. You can easily find them in the machinery, metro, building etc.
Show:

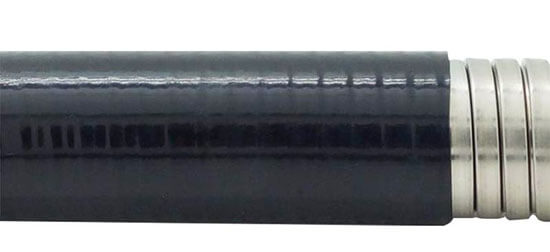

liquid tight flexible conduit show

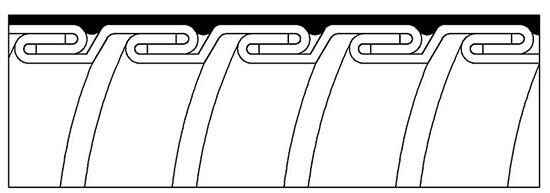

liquid tight flexible conduit structure
Size Chart:
|
Part No.
|
Inner Diameter(inch)
|
Inner Diameter(mm)
|
Outer Diameter(mm)
|
|
FG-LTDM-10
|
1/4″
|
9.5
|
14.1
|
|
FG-LTDM-13
|
3/8″
|
12.5
|
17.7
|
|
FG-LTDM-16
|
1/2″
|
16.1
|
21.5
|
|
FG-LTDM-21
|
3/4″
|
20.8
|
26.7
|
|
FG-LTDM-26
|
1″
|
26.0
|
33.0
|
|
FG-LTDM-32
|
1-1/4″
|
32.0
|
42.2
|
|
FG-LTDM-39
|
1-1/2″
|
39.0
|
47.4
|
|
FG-LTDM-51
|
2″
|
51.0
|
59.6
|
Custom Service:
Liquid tight flexible conduit custom service is workable for us. Like color, materials, packing quantity, packages, logo etc.
Packages:
Liquid tight flexible conduit general package(We’ll add pallet outside during export)
