Metal Thread Plastic Conduit Connectors
- PRODUCT DETAIL
Usage:

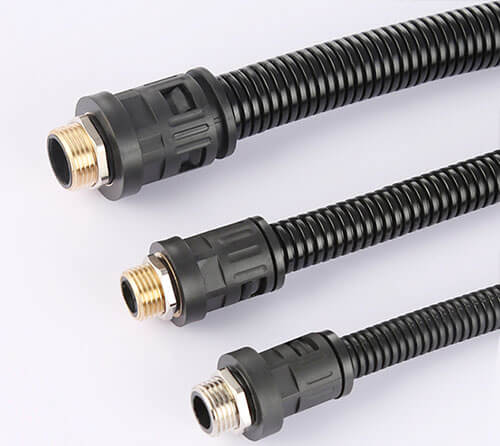

Metal thread plastic conduit connectors are often used to connect plastic flexible conduit with others(always machine).
Structure:

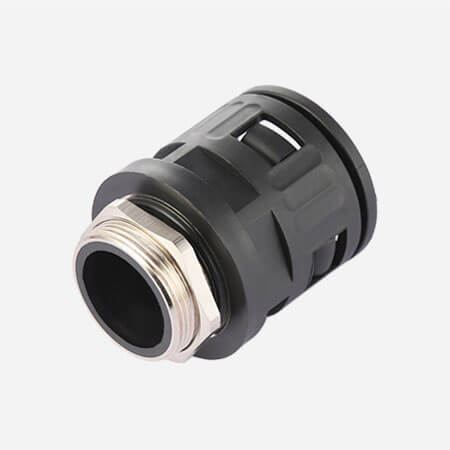

metal thread plastic conduit connectors show

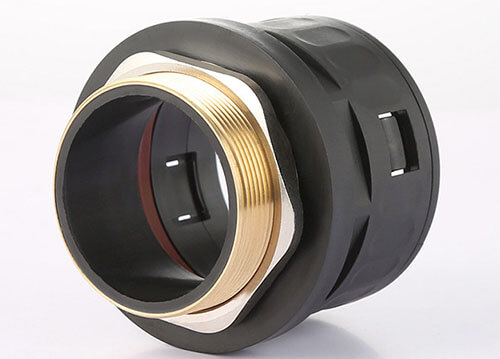

metal thread plastic conduit connectors show

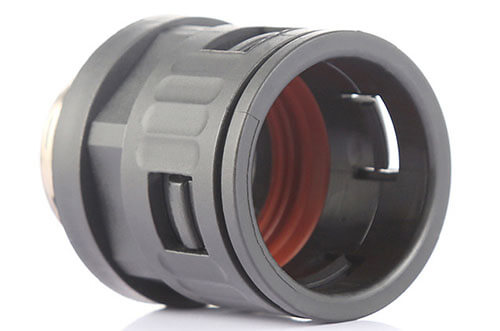

metal thread plastic conduit connectors show
Size Chart:
|
Part No.
|
Inch
|
Matched Conduit I.D. |
Matched Conduit O.D.
|
Thread
|
|
FG-TR-AD13.0/M16
|
5/16″
|
10.0mm |
13.0mm
|
M16*1.5
|
|
FG-TR-AD15.8/M16
|
3/8″
|
12.0mm |
15.8mm
|
M16*1.5
|
|
FG-TR-AD21.2/M20
|
1/2″
|
17.0mm |
21.2mm
|
M20*1.5
|
|
FG-TR-AD28.5/M25
|
3/4″
|
23.0mm |
28.5mm
|
M25*1.5
|
|
FG-TR-AD34.5/M32
|
1″
|
29.0mm |
34.5mm
|
M32*1.5
|
|
FG-TR-AD42.5/M40
|
1-1/4″
|
36.0mm |
42.5mm
|
M40*1.5
|
|
FG-TR-AD54.5/M50
|
2″
|
48.0mm |
54.5mm
|
M50*1.5
|
Custom Service:
Metal thread plastic conduit connectors customizable service is workable for us. Like color, materials, packing quantity, packages, logo etc.
