Nylon Wire Loom
- PRODUCT DETAIL
Usage:
nylon wire loom is a high temperature wire loom. It is widely used in wire/cable protection and manage industry.
Show:

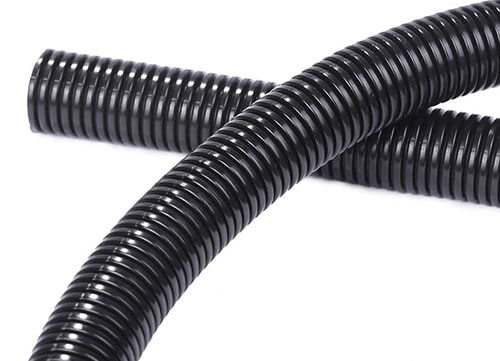

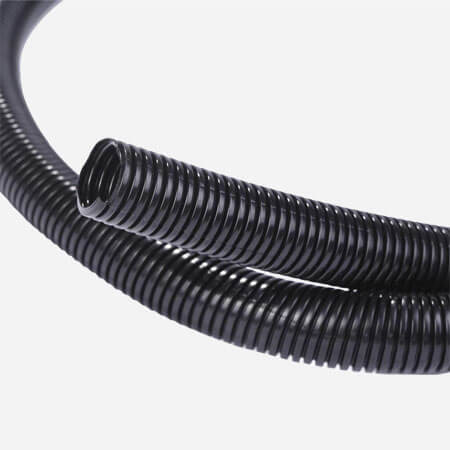

nylon wire loom

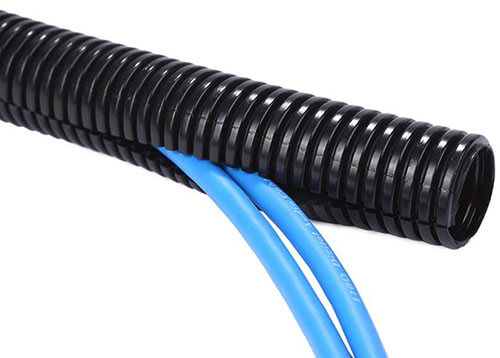

nylon split wire loom
Size Chart:
|
Non-Split Part No.
|
Split Part No.
|
Inner Diameter
|
Outer Diamete
|
Bending Radius
|
Packing Quantity
|
|
FG-PA-7.0
|
FG-SPA-7.0
|
4.5mm(0.18″)
|
7.0mm(0.28″)
|
12m
|
200m/roll
|
|
FG-PA-10.0
|
FG-SPA-10.0
|
6.5mm(0.26″)
|
10.0mm(0.40″)
|
16m
|
100m/roll
|
|
FG-PA-11.6
|
FG-SPA-11.6
|
8.6mm(0.34″)
|
11.6mm(0.47″)
|
16m
|
100m/roll
|
|
FG-PA-13.0
|
FG-SPA-13.0
|
10.0mm(0.40″)
|
13.0mm(0.52″)
|
20m
|
100m/roll
|
|
FG-PA-14.0
|
FG-SPA-14.0
|
11.0mm(0.44″)
|
14.0mm(0.56″)
|
25m
|
100m/roll
|
|
FG-PA-15.8
|
FG-SPA-15.8
|
12.0mm(0.48″)
|
15.8mm(0.64″)
|
30m
|
100m/roll
|
|
FG-PA-18.5
|
FG-SPA-18.5
|
14.3mm(0.57″)
|
18.5mm(0.74″)
|
40m
|
100m/roll
|
|
FG-PA-20.0
|
FG-SPA-20.0
|
16.0mm(0.64″)
|
20.0mm(0.80″)
|
45m
|
100m/roll
|
|
FG-PA-21.2
|
FG-SPA-21.2
|
17.0mm(0.68″)
|
21.2mm(0.85″)
|
45m
|
100m/roll
|
|
FG-PA-25.0
|
FG-SPA-25.0
|
20.0mm(0.80″)
|
25.0mm(1″)
|
45m
|
100m/roll
|
|
FG-PA-28.5
|
FG-SPA-28.5
|
23.0mm(0.92)
|
28.5mm(1.14″)
|
50m
|
100m/roll
|
|
FG-PA-32.0
|
FG-SPA-32.0
|
25.0mm(1″)
|
32.0mm(1.28″)
|
55m
|
50m/roll
|
|
FG-PA-34.5
|
FG-SPA-34.5
|
29.0mm(1.16″)
|
34.5mm(1.38″)
|
60m
|
50m/roll
|
|
FG-PA-42.5
|
FG-SPA-42.5
|
36.0mm(1.44″)
|
42.5mm(1.70″)
|
70m
|
25m/roll
|
|
FG-PA-54.5
|
FG-SPA-54.5
|
48.0mm(1.92″)
|
54.5mm(2.18″)
|
90m
|
25m/roll
|
|
FG-PA-67.2
|
FG-SPA-67.2
|
56.3mm(2.25″)
|
67.2mm(2.69″)
|
130m
|
25m/roll
|
|
FG-PA-80.0
|
FG-SPA-80.0
|
66.5mm(2.66″)
|
80.0mm(3.20″)
|
170m
|
20m/roll
|
|
FG-PA-106.0
|
FG-SPA-106.0
|
91.0mm(3.64″)
|
106.0mm(4.24″)
|
225m
|
20m/roll
|
Packages:

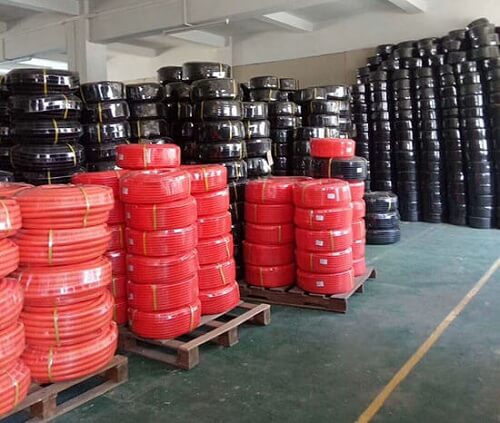

nylon wire loom packages
Custom Service:
nylon wire loom custom service is workable for us. Like color, materials, packing quantity, packages, logo, non-split, UV resistance etc.
