Usage:
Plastic antistretch conduit connectors are often used to connect plastic flexible conduit with others(always machine). They are widely used in wire and cable protection industry with good antistretch property.
Structure:
plastic antistretch conduit connectors structure

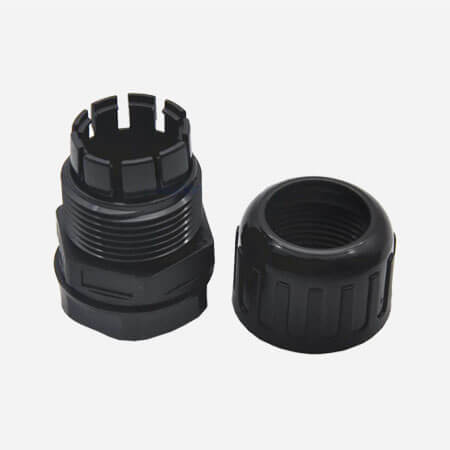

plastic antistretch conduit connectors show
Size Chart:
Metric Thread:
Part No.
|
Matched Conduit OD(inch)
|
Matched Conduit OD(mm)
|
Thread
|
FG-KJM1012
|
1/4″
|
10
|
M12*1.5
|
FG-KJM1316
|
5/16″
|
13
|
M16*1.5
|
FG-KJM1616
|
3/8″
|
15.8
|
M16*1.5
|
FG-KJM1620
|
3/8″
|
15.8
|
M20*1.5
|
FG-KJM1622
|
3/8″
|
15.8
|
M22*1.5
|
FG-KJM1816
|
–
|
18.5
|
M16*1.5
|
FG-KJM1820
|
–
|
18.5
|
M20*1.5
|
FG-KJM1822
|
–
|
18.5
|
M22*1.5
|
FG-KJM2120
|
1/2″
|
21.2
|
M20*1.5
|
FG-KJM2125
|
1/2″
|
21.2
|
M25*1.5
|
FG-KJM2525
|
–
|
25
|
M25*1.5
|
FG-KJM2825
|
3/4″
|
28.5
|
M25*1.5
|
FG-KJM3432
|
1″
|
34.5
|
M32*1.5
|
FG-KJM4240
|
1-1/4″
|
42.5
|
M40*1.5
|
FG-KJM4250
|
1-1/4″
|
42.5
|
M50*1.5
|
FG-KJM5450
|
2″
|
54.5
|
M50*1.5
|
FG-KJM5463
|
2″
|
54.5
|
M63*1.5
|
PG Thread:
Part No.
|
Matched Conduit OD(inch)
|
Matched Conduit OD(mm) | Thread |
FG-KJPG1007
|
1/4″
|
10
|
PG7
|
FG-KJPG1009
|
1/4″
|
10
|
PG9
|
FG-KJPG1309
|
5/16″
|
13
|
PG9
|
FG-KJPG1311
|
5/16″
|
13
|
PG11
|
FG-KJPG1611
|
3/8″
|
15.8
|
PG11
|
FG-KJPG1613
|
3/8″
|
15.8
|
PG13.5
|
FG-KJPG1616
|
3/8″
|
15.8
|
PG16
|
FG-KJPG1811
|
–
|
18.5
|
PG11
|
FG-KJPG1816
|
–
|
18.5
|
PG13.5
|
FG-KJPG1816
|
–
|
18.5
|
PG16
|
FG-KJPG2116
|
1/2″
|
21.2
|
PG16
|
FG-KJPG2121
|
1/2″
|
21.2
|
PG21
|
FG-KJPG2521
|
–
|
25
|
PG21
|
FG-KJPG2821
|
3/4″
|
28.5
|
PG21
|
FG-KJPG3429
|
1″
|
34.5
|
PG29
|
FG-KJPG4236
|
1-1/4″
|
42.5
|
PG36
|
FG-KJPG4242
|
1-1/4″
|
42.5
|
PG42
|
FG-KJPG5448
|
2″
|
54.5
|
PG48
|
G(PF) Thread:
Part No.
|
Matched Conduit OD(inch)
|
Matched Conduit OD(mm)
|
Thread
|
FG-KJG13-3/8
|
5/16″
|
13
|
3/8″
|
FG-KJG16-3/8
|
3/8″
|
15.8
|
3/8″
|
FG-KJG16-1/2
|
3/8″
|
15.8
|
1/2″
|
FG-KJG18-3/8
|
–
|
18.5
|
3/8″
|
FG-KJG18-1/2
|
–
|
18.5
|
1/2″
|
FG-KJG21-1/2
|
1/2″
|
21.2
|
1/2″
|
FG-KJG21-3/4
|
1/2″
|
21.2
|
3/4″
|
FG-KJG25-3/4
|
–
|
25
|
3/4″
|
FG-KJG28-3/4
|
3/4″
|
28.5
|
3/4″
|
FG-KJG34-1
|
1″
|
34.5
|
1″
|
FG-KJG42-1-1/4
|
1-1/4″
|
42.5
|
1-1/4″
|
FG-KJG42-1-1/2
|
1-1/4″
|
42.5
|
1-1/2″
|
FG-KJG54-1-1/2
|
2″
|
54.5
|
1-1/2″
|
Custom Service:
Plastic antistretch conduit connectors custom service is workable for us. Like color, materials, packing quantity, packages, logo etc.
