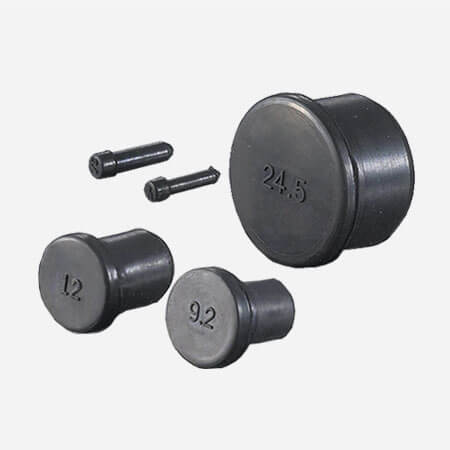

Plastic Cable Gland Plugs
- PRODUCT DETAIL
Usage:
Plastic cable gland plugs are used to seal spare cable glands and multiple hole seals of cable glands against dust and water.
Size Chart:

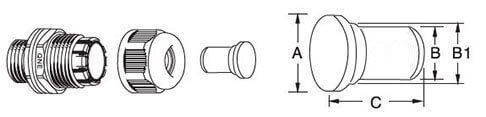

Plastic cable gland plugs for single hole sizes
|
Part No.
|
A(outer diameter)
|
B(outer diameter)
|
B1(outer diameter)
|
C(length)
|
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
|
|
FG-CGP-B-055
|
11
|
5.5
|
8.7
|
18
|
|
FG-CGP-B-071
|
13.2
|
7
|
10.7
|
18
|
|
FG-CGP-B-079
|
11
|
7.9
|
8.7
|
18
|
|
FG-CGP-B-092
|
15.5
|
9.2
|
12.7
|
18
|
|
FG-CGP-B-105
|
17
|
10.5
|
14.3
|
18
|
|
FG-CGP-B-120
|
15.5
|
12
|
12.7
|
18
|
|
FG-CGP-B-140
|
17
|
14
|
14.4
|
18
|
|
FG-CGP-B-158
|
22
|
15.8
|
19.3
|
18
|
|
FG-CGP-B-178
|
22
|
17.8
|
19.3
|
18
|
|
FG-CGP-B-215
|
28
|
21.5
|
25
|
18
|
|
FG-CGP-B-245
|
28
|
24.5
|
25
|
18
|
|
FG-CGP-B-280
|
35
|
26.2
|
33
|
20
|
|
FG-CGP-B-306
|
36
|
30.6
|
33
|
20
|
|
FG-CGP-B-410
|
46 |
41
|
43.1
|
20
|

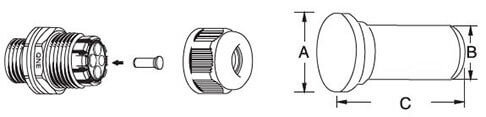

Plastic cable gland plugs for multiple hole sizes
|
Part No.
|
A(outer diameter)
|
B(outer diameter)
|
C(length)
|
|
(mm)
|
(mm)
|
(mm)
|
|
|
FG-CGPM-B-024
|
3.6
|
2.6
|
15
|
|
FG-CGPM-B-034
|
4.4
|
3.4
|
15
|
|
FG-CGPM-B-050
|
6
|
5
|
15
|
|
FG-CGPM-B-053
|
6.3
|
5.3
|
15
|
|
FG-CGPM-B-060
|
7.5
|
6
|
15
|
|
FG-CGPM-B-070
|
8.5
|
7
|
15
|
|
FG-CGPM-B-080
|
9.5
|
8
|
15
|
|
FG-CGPM-B-100
|
11.5
|
10
|
15
|
Custom Service:
Plastic cable gland plugs custom service is workable for us. Like colors, packing quantity, packages, logo etc.
Package:
cable glands general package
