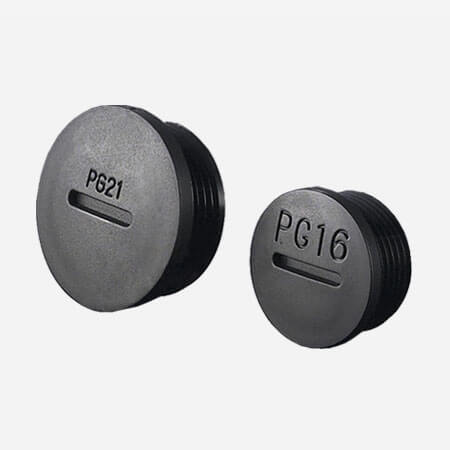

Plastic Cable Gland Screw Plugs
- PRODUCT DETAIL
Usage:
Plastic cable gland screw plugs are widely used in cable managements, with the best water/salt/acid/alcohol/oil proof properties.

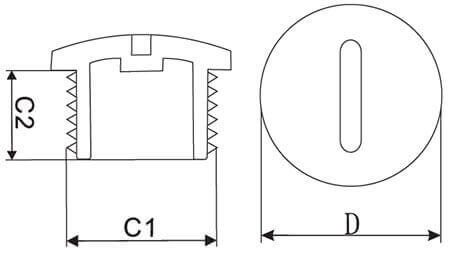

Structure:
plastic cable gland screw plugs structure
Size Chart:
Metric thread
|
Thread
|
Part No.
|
Outer Diameter(mm)
|
Thread Length(mm)
|
Packages(pcs)
|
|
M12*1.5
|
FG-CGSP-M12
|
15
|
8
|
100
|
|
M16*1.5
|
FG-CGSP-M16
|
20
|
8
|
100
|
|
M18*1.5
|
FG-CGSP-M28
|
22
|
8
|
100
|
|
M20*1.5
|
FG-CGSP-M20
|
25
|
9
|
100
|
|
M22*1.5
|
FG-CGSP-M22
|
27
|
10
|
100
|
|
M25*1.5
|
FG-CGSP-M25
|
30
|
10
|
100
|
|
M27*2.0
|
FG-CGSP-M27
|
33
|
10
|
100
|
|
M32*1.5
|
FG-CGSP-M32
|
39
|
11
|
50
|
|
M40*1.5
|
FG-CGSP-M40
|
46
|
12
|
50
|
|
M50*1.5
|
FG-CGSP-M50
|
57
|
11
|
50
|
|
M63*1.5
|
FG-CGSP-M63
|
70
|
12
|
50
|
PG thread
|
Thread
|
Part No.
|
Outer Diameter(mm)
|
Thread Length(mm)
|
Packages(pcs)
|
|
PG7
|
FG-CGSP-PG7
|
15
|
8
|
100
|
|
PG9
|
FG-CGSP-PG9
|
19
|
8
|
100
|
|
PG11
|
FG-CGSP-PG11
|
22
|
8
|
100
|
|
PG13.5
|
FG-CGSP-PG13.5
|
25
|
9
|
100
|
|
PG16
|
FG-CGSP-PG16
|
27
|
10
|
100
|
|
PG21
|
FG-CGSP-PG21
|
33
|
11
|
100
|
|
PG29
|
FG-CGSP-PG29
|
44
|
11
|
50
|
|
PG36
|
FG-CGSP-PG36
|
55
|
11
|
50
|
|
PG42
|
FG-CGSP-PG42
|
62
|
11
|
50
|
|
PG48
|
FG-CGSP-PG48
|
69
|
12
|
50
|
Custom Service:
Plastic cable gland screw plugs custom service is workable for us. Like colors, packing quantity, packages, logo etc.
Package:
cable glands general package
