Plastic Elbow Quick Connector
- PRODUCT DETAIL
Usage:
Plastic conduit elbow quick connector is widely used in wire and cable protection industry. To connect plastic flexible conduit with others(always machine). The protection level can reach IP68 with available waterproof ring.

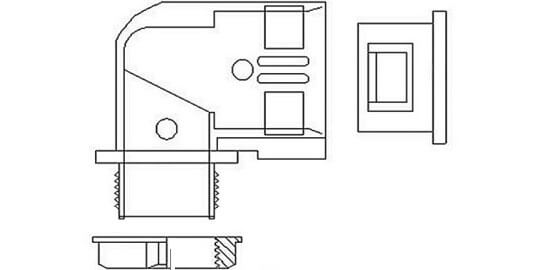

Structure:

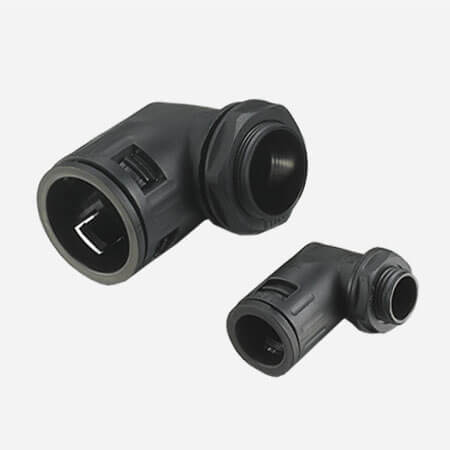

plastic conduit elbow quick connector

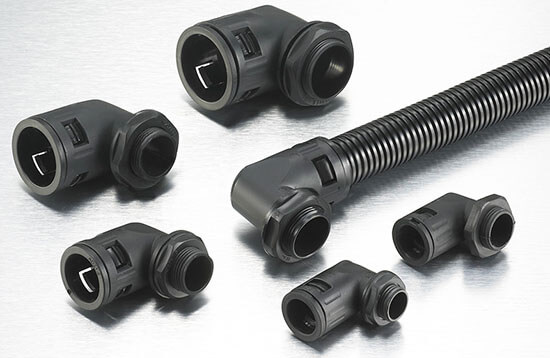

plastic conduit elbow quick connector with plastic flexible conduit
Size Chart:
Metric Thread:
|
Matched Conduit OD
|
Part No.
|
Thread
|
Packing Quantity(pcs)
|
|
|
mm
|
inch
|
|||
|
10.0
|
1/4″
|
RTF-M12-10.0
|
M12*1.5
|
50
|
|
13.0
|
5/16″
|
RTF-M16-13.0
|
M16*1.5
|
50
|
|
15.8
|
3/8″
|
RTF-M16-15.8
|
M16*1.5
|
50
|
|
RTF-M18-15.8
|
M18*1.5
|
50
|
||
|
RTF-M20-15.8
|
M20*1.5
|
50
|
||
|
18.5
|
RTF-M20-18.5
|
M20*1.5
|
50
|
|
|
21.2
|
1/2″
|
RTF-M20-21.2
|
M20*1.5
|
50
|
|
RTF-M24-21.2
|
M24*1.5
|
50
|
||
|
RTF-M25-21.5
|
M25*1.5
|
50
|
||
|
25.0
|
RTF-M25-25.0
|
M25*1.5
|
50
|
|
|
28.5
|
3/4″
|
RTF-M25-28.5
|
M25*1.5
|
20
|
|
RTF-M27-28.5
|
M27*1.5
|
20
|
||
|
RTF-M30-28.5
|
M30*1.5
|
20
|
||
|
34.5
|
1″
|
RTF-M32-34.5
|
M32*1.5
|
10
|
|
RTF-M36-34.5
|
M36*1.5
|
10
|
||
|
RTF-M40-34.5
|
M40*1.5
|
10
|
||
|
42.5
|
1-1/4″
|
RTF-M50-42.5
|
M40*1.5
|
5
|
|
54.5
|
2″
|
RTF-M50-54.5
|
M50*1.5
|
5
|
|
RTF-M63-54.5
|
M63*1.5
|
5
|
||
PG Thread:
|
Matched Conduit OD
|
Part No.
|
Thread
|
Packing Quantity(pcs)
|
|
|
mm
|
inch
|
|||
|
10.0
|
1/4″
|
RTF-PG7-10.0
|
PG7
|
50
|
|
13.0
|
5/16″
|
RTF-PG9-13.0
|
PG9
|
50
|
|
15.8
|
3/8″
|
RTF-PG11-15.8
|
PG11
|
50
|
|
18.5
|
RTF-PG13.5-18.5
|
PG13.5
|
50
|
|
|
21.2
|
1/2″
|
RTF-PG16-21.2
|
PG16
|
50
|
|
28.5
|
3/4″
|
RTF-PG21-28.5
|
PG21
|
20
|
|
34.5
|
1″
|
RTF-PG29-34.5
|
PG29
|
10
|
|
42.5
|
1-1/4″
|
RTF-PG36-42.5
|
PG36
|
5
|
|
54.5
|
2″
|
RTF-PG48-54.5
|
PG48
|
5
|
G(PF) Thread:
|
Matched Conduit OD
|
Part No.
|
Thread
|
Packing Quantity(pcs)
|
|
|
mm
|
inch
|
|||
|
21.2
|
1/2″
|
RTF-G1/2-21.2
|
G(PF)1/2
|
50
|
|
28.5
|
3/4″
|
RTF-G3/4-28.5
|
G(PF)3/4
|
20
|
|
34.5
|
1″
|
RTF-G1-34.5
|
G(PF)1
|
10
|
|
42.5
|
1-1/4″
|
RTF-G1-1/4-42.5
|
G(PF)1-1/4
|
5
|
|
54.5
|
2″
|
RTF-G1-1/2-54.5
|
G(PF)1-1/2
|
5
|
|
RTF-G2-54.5
|
G(PF)2
|
5
|
||
Custom Service:
Plastic conduit elbow quick connector custom service is workable for us. Like color, materials, packing quantity, packages, logo etc.
