Usage:
Plastic wall plug is widely used in wire and cable managements, with the best waterproof, durable, insulating properties.

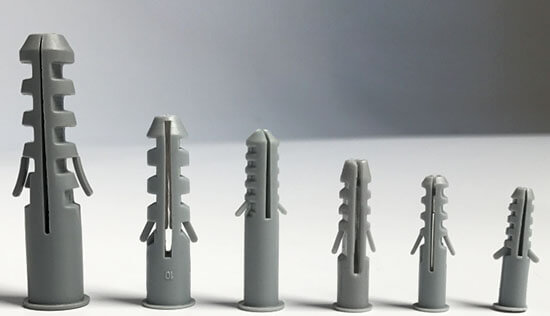

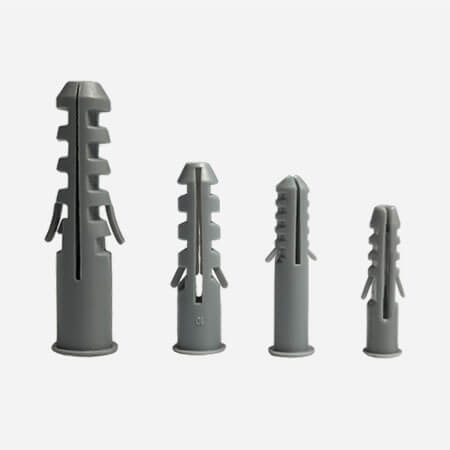

Show:
grey plastic wall plug

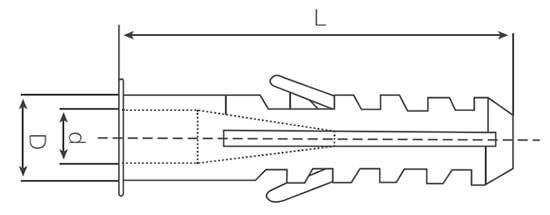

Structure:
plastic wall plug structure
Size Chart:
plastic wall plug size
Part No.
|
L(mm)
|
d(mm)
|
D(mm)
|
Packing Quantity(pcs/bag)
|
FG-PWG-5
|
26.5
|
3.5
|
5
|
1000
|
FG-PWG-6
|
29
|
4.4
|
5.8
|
1000
|
FG-PWG-7
|
32.6
|
4.9
|
6.8
|
700
|
FG-PWG-8
|
39
|
5.3
|
7.7
|
500
|
FG-PWG-10
|
42.5
|
7.7
|
9.5
|
300
|
FG-PWG-12
|
57.4
|
9.8
|
12
|
150
|
plastic wall plug matched thread and drill bit size
Part No.
|
Matched Thread Size
|
Matched Drill Bit Size
|
FG-PWG-5
|
M3.5*25mm
|
M5
|
FG-PWG-6
|
M4*30mm
|
M6
|
FG-PWG-7
|
M4.5*30mm
|
M7
|
FG-PWG-8
|
M5*40mm
|
M8
|
FG-PWG-10
|
M7*40mm
|
M10
|
FG-PWG-12
|
M10*55mm
|
M12
|
Custom Service:
Plastic wall plug custom service is workable for us. Like color, materials, packing quantity, packages, logo etc.
