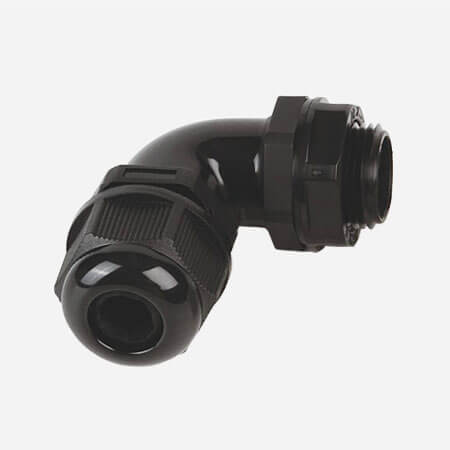

Right Angle Cable Gland
- PRODUCT DETAIL
Usage:
Right angle cable gland can hold cable firmly and have a wider cable range. They are widely used in wire and cable managements. And it can also resistant to salt water, weak acid, alcohol, oil, grease and common solvency.

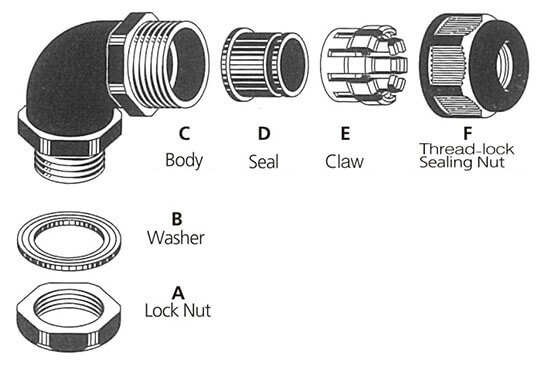

Structure:
right angle cable gland structure
Size Chart:
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
M12*1.5
|
FG-ACG-M12A-5.5
|
3-5.5
|
12
|
8.5
|
18
|
|
FG-ACG-M12A-8
|
4-8
|
12
|
8.5
|
18
|
|
|
M16*1.5
|
FG-ACG-M16A-7
|
4-7
|
16
|
10
|
22
|
|
FG-ACG-M16A-10
|
6-10
|
16
|
10
|
22
|
|
|
M20*1.5
|
FG-ACG-M20A-11
|
6-11
|
20
|
15
|
24
|
|
FG-ACG-M20A-14
|
9-14
|
20
|
15
|
24
|
|
|
M25*1.5
|
FG-ACG-M25A-16
|
10-16
|
25
|
15
|
33
|
|
FG-ACG-M25A-18
|
13-18
|
25
|
15
|
33
|
|
|
M32*1.5
|
FG-ACG-M32A-22
|
15-22
|
32
|
15
|
41
|
|
FG-ACG-M32A-25
|
18-25
|
32
|
15
|
41
|
|
|
M40*1.5
|
FG-ACG-M40A-33
|
26-33
|
40
|
20
|
52
|
| M50*1.5 |
FG-ACG-M50A-41
|
33-41
|
40
|
20
|
52
|
Custom Service:
Right angle cable gland custom service is workable for us. Like colors, packing quantity, packages, logo etc.

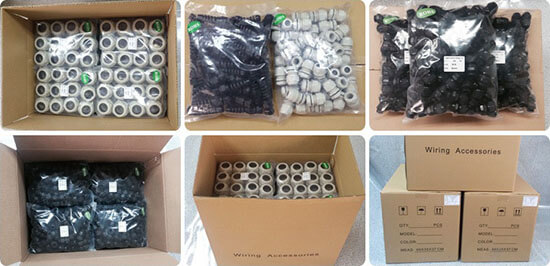

Package:
cable gland general package
