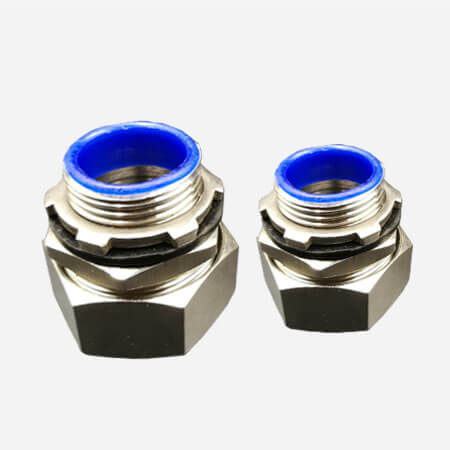

Stainless Conduit Connectors
- PRODUCT DETAIL
Usage:
Stainless flexible conduit connectors are widely used to connect flexible metal conduit or pvc coated flexible conduit. It is more durable than zinic alloy flexible conduit connectors. Generally, stainless conduit connectors default thread is G thread. Metric, PG, NPT thread also workable for us. 304 stainless steel and 316 stainless steel flexible conduit connectors are also workable for us.
Structure:

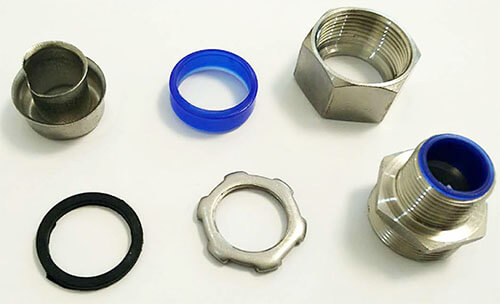

stainless flexible conduit connectors structure

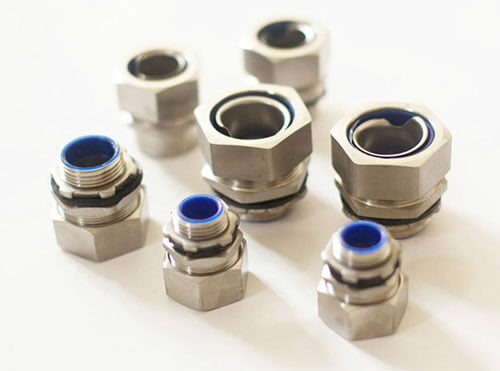

stainless flexible conduit connectors show

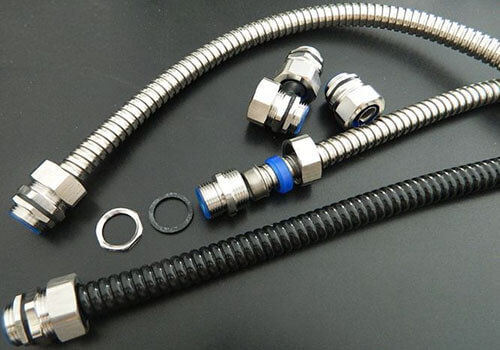

stainless flexible conduit connectors used in flexible metal conduit and pvc coated flexible conduit
Size Chart:
|
Part No.
|
Matched Conduit ID(inch)
|
Matched Conduit ID(mm)
|
Thread(default)
|
Thread OD(mm)
|
|
FG-DPJS-6
|
–
|
DN6
|
M14*1.5
|
13.5
|
|
FG-DPJS-8
|
–
|
DN8
|
M16*1.5
|
15.5
|
|
FG-DPJS-10
|
1/4″
|
DN10
|
M16*1.5
|
15.5
|
|
FG-DPJS-13
|
3/8″
|
DN13
|
M20*1.5
|
19.5
|
|
FG-DPJS-16
|
1/2″
|
DN16
|
G1/2″
|
20.5
|
|
FG-DPJS-20
|
3/4″
|
DN20
|
G3/4″
|
26
|
|
FG-DPJS-25
|
1″
|
DN25
|
G1″
|
32.7
|
|
FG-DPJS-32
|
1-1/4″
|
DN32
|
G1-1/4″
|
41.4
|
|
FG-DPJS-38
|
1-1/2″
|
DN38
|
G1-1/2″
|
47.3
|
|
FG-DPJS-51
|
2″
|
DN51
|
G2″
|
59.1
|
|
FG-DPJS-64
|
2-1/2″
|
DN64
|
G2-1/2″
|
74.7
|
|
FG-DPJS-75
|
3″
|
DN75
|
G3″
|
87.4
|
|
FG-DPJS-100
|
4″
|
DN100
|
G4″
|
112.5
|
|
FG-DPJS-125
|
5″
|
DN125
|
G5″
|
137.9
|
|
FG-DPJS-150
|
6″
|
DN150
|
G6″
|
163.3
|
Custom Service:
Stainless flexible conduit connectors custom service is workable for us. Like thread, materials, packing quantity, packages, logo etc.
