Stainless Steel Cable Gland
- PRODUCT DETAIL
Usage:
Stainless steel cable gland can hold cable firmly and have a wider cable range. They are widely used in wire and cable managements. And it can also resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
Structure:

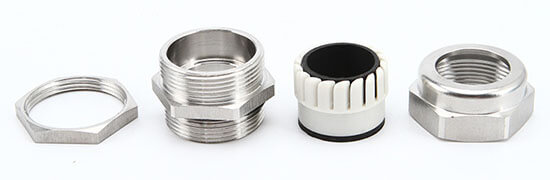

stainless steel cable gland structure

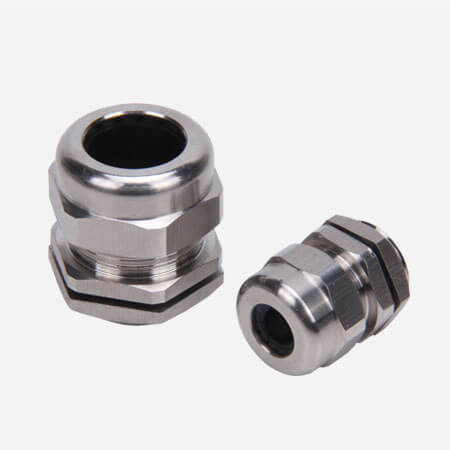

stainless steel cable gland show
Size Chart:
Metric Thread
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
M8*1.25
|
FG-SSCG-M8-3.8
|
2-3.8
|
8
|
5.5
|
11/11
|
|
M10*1.25
|
FG-SSCG-M10-6.5
|
2-6.5
|
10
|
6.5
|
14/14
|
|
M12*1.5
|
FG-SSCG-M12S-5.5
|
2-6.5
|
12
|
7
|
14/14
|
|
FG-SSCG-M12-8
|
4.5-8
|
12
|
8
|
18/18
|
|
|
M16*1.5
|
FG-SSCG-M16S-8
|
4.5-8
|
16
|
9
|
18/18
|
|
FG-SSCG-M16-10
|
6-10
|
16
|
9
|
22/22
|
|
|
M20*1.5
|
FG-SSCG-M20S-12.5
|
7-12.5
|
20
|
9.5
|
24/24
|
|
FG-SSCG-M20-14
|
9-14
|
20
|
9.5
|
25/25
|
|
|
M22*1.5
|
FG-SSCG-M22-14
|
9-14
|
22
|
9.5
|
25/25
|
|
M24*1.5
|
FG-SSCG-M24-18
|
14-18
|
24
|
10
|
27/27
|
|
M25*1.5
|
FG-SSCG-M25-18
|
14-18
|
25
|
12
|
30/30
|
|
M32*1.5
|
FG-SSCG-M32-25
|
18-25
|
32
|
12.5
|
40/40
|
|
M36*1.5
|
FG-SSCG-M36-25
|
18-25
|
36
|
12.5
|
40/40
|
|
M40*1.5
|
FG-SSCG-M40-31
|
24-31
|
40
|
15
|
50/50
|
|
M50*1.5
|
FG-SSCG-M50-41
|
31-41
|
50
|
15
|
59/59
|
|
M63*1.5
|
FG-SSCG-M63-45
|
35-45
|
63
|
17
|
69/69
|
|
M90*1.5
|
FG-SSCG-M90-77
|
66-77
|
90
|
18
|
94/94
|
PG Thread
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
PG7
|
FG-SSCG-PG7-8
|
4.5-8
|
12.5
|
8
|
18/18
|
|
PG9
|
FG-SSCG-PG9-8
|
4.5-8
|
15.2
|
8
|
18/18
|
|
PG11
|
FG-SSCG-PG11-10
|
6-10
|
18.66
|
9
|
22/22
|
|
PG13.5
|
FG-SSCG-PG13.5-12.5
|
7-12.5
|
20.4
|
9.5
|
24/24
|
|
PG16
|
FG-SSCG-PG16-14
|
9-14
|
22.5
|
9.5
|
25/25
|
|
PG21
|
FG-SSCG-PG21-18
|
14-18
|
28.3
|
12
|
30/30
|
|
PG29
|
FG-SSCG-PG29-25
|
18-25
|
37
|
12.5
|
40/40
|
|
PG36
|
FG-SSCG-PG36-31
|
24-31
|
47
|
15
|
50/50
|
|
PG42
|
FG-SSCG-PG42-41
|
31-41
|
54
|
15
|
59/59
|
|
PG48
|
FG-SSCG-PG48-45
|
35-45
|
59.3
|
17
|
69/69
|
Custom Service:
Stainless steel cable gland custom service is workable for us. Like materials, thread, packing quantity, packages, logo etc.
