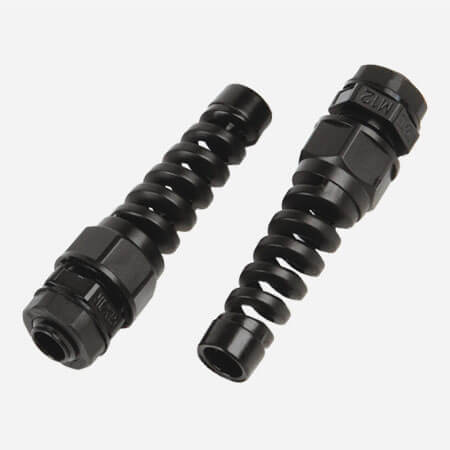

Plastic Strain Relief Connector
- PRODUCT DETAIL
Usage:
Plastic strain relief connector can hold cable firmly and have a wider cable range. They are widely used in wire and cable managements. And it can also resistant to salt water, weak acid, alcohol, oil, grease and common solvency.

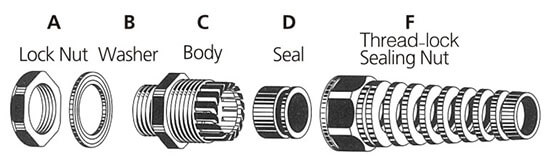

Structure:
plastic strain relief connector structure
Size Chart:
Metric Thread
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
M12*1.5
|
FG-SCG-M12S-6
|
2-6
|
12
|
8.5
|
18/15
|
|
FG-SCG-M12SL-6
|
2-6
|
12
|
15
|
18/15
|
|
|
FG-SCG-M12-7
|
3-7
|
12
|
8.5
|
18/19
|
|
|
FG-SCG-M12L-7
|
3-7
|
12
|
15
|
18/19
|
|
|
M16*1.5
|
FG-SCG-M16S-8
|
4-8
|
16
|
10
|
22/19
|
|
FG-SCG-M16SL-8
|
4-8
|
16
|
15
|
22/19
|
|
|
FG-SCG-M16-10
|
6-10
|
16
|
10
|
22/22
|
|
|
FG-SCG-M16L-10
|
6-10
|
16
|
15
|
22/22
|
|
|
M18*1.5
|
FG-SCG-M18-10
|
6-10
|
18
|
10
|
24/22
|
|
FG-SCG-M18L-10
|
6-10
|
18
|
15
|
24/22
|
|
|
M20*1.5
|
FG-SCG-M20M-10
|
6-10
|
20
|
10
|
27/22
|
|
FG-SCG-M20S-12.5
|
7-12.5
|
20
|
10
|
27/24
|
|
|
FG-SCG-M20SL-12.5
|
7-12.5
|
20
|
10
|
27/24
|
|
|
FG-SCG-M20-14
|
8.5-14
|
20
|
15
|
27/27
|
|
|
FG-SCG-M20L-14
|
8.5-14
|
20
|
11
|
27/27
|
|
|
M22*1.5
|
FG-SCG-M22-14
|
8.5-14
|
22
|
15
|
30/27
|
|
M25*1.5
|
FG-SCG-M25S-14
|
8.5-14
|
25
|
11
|
33/27
|
|
FG-SCG-M25-18
|
12.5-18
|
25
|
11.6
|
33/33
|
|
|
FG-SCG-M25L-18
|
12.5-18
|
25
|
11.6
|
33/33
|
PG Thread
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
PG7
|
FG-SCG-PG7S-6
|
2-6
|
12.5
|
8
|
17/15
|
|
FG-SCG-PG7SL-6
|
2-6
|
12.5
|
15
|
17/15
|
|
|
FG-SCG-PG7-7
|
3-7
|
12.5
|
8
|
17/19
|
|
|
PG9
|
FG-SCG-PG9-8
|
4-8
|
15.2
|
8.2
|
22/19
|
|
FG-SCG-PG9L-8
|
4-8
|
15.2
|
15
|
22/19
|
|
|
PG11
|
FG-SCG-PG11-10
|
6-10
|
18.6
|
10
|
24/22
|
|
FG-SCG-PG11L-10
|
6-10
|
18.6
|
15
|
24/22
|
|
|
PG13.5
|
FG-SCG-PG13.5-12.5
|
7-12.5
|
20.4
|
10
|
27/24
|
|
FG-SCG-PG13.5L-12.5
|
7-12.5
|
20.4
|
15
|
27/24
|
|
|
PG16
|
FG-SCG-PG16-14
|
8.5-14
|
22.5
|
10.8
|
30/27
|
|
FG-SCG-PG16L-14
|
8.5-14
|
22.5
|
15
|
30/27
|
|
|
PG19
|
FG-SCG-PG19-14
|
8.5-14
|
24.0
|
11
|
30/27
|
|
PG21
|
FG-SCG-PG21-18
|
12.5-18
|
28.3
|
12
|
36/33
|
|
FG-SCG-PG21L-18
|
12.5-18
|
28.3
|
15
|
36/33
|
G(PF) Thread
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
G3/8″
|
FG-SCG-G3/8-10
|
6-10
|
16.662
|
10
|
22/22
|
|
G1/2″
|
FG-SCG-G1/2-12.5
|
7-12.5
|
20.955
|
10
|
27/24
|
|
G3/4″
|
FG-SCG-G3/4-18
|
12.5-18
|
26.441
|
12
|
33/27
|
NPT Thread
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
NPT3/8″
|
FG-SCG-NPT3/8-10
|
6-10
|
16.662
|
10
|
22
|
|
NPT1/2″
|
FG-SCG-NPT1/2-12.5
|
7-12.5
|
20.955
|
10
|
24
|
|
NPT3/4″
|
FG-SCG-NPT3/4-18
|
12.5-18
|
26.441
|
15
|
33
|
Custom Service:
Plastic strain relief connector custom service is workable for us. Like colors, packing quantity, packages, logo etc.
Package:
cable glands general package
