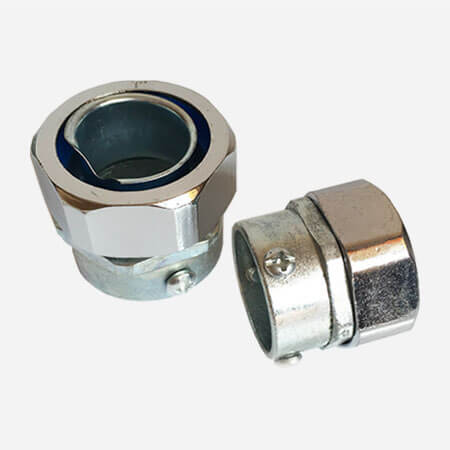

Three Column Conduit Connectors
- PRODUCT DETAIL
Usage:
Three column conduit connectors are widely used in wire and cable protection industry. To connect flexible metal conduit or pvc coated flexible conduit to others.
Structure:

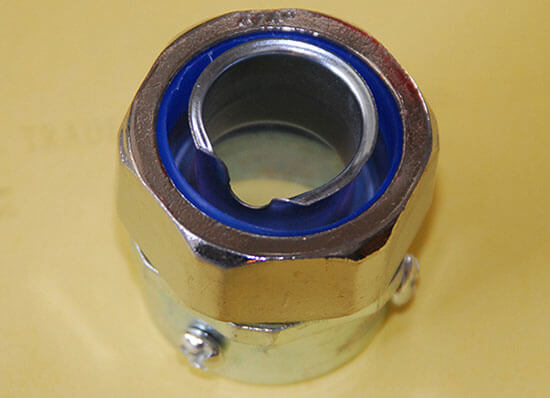

three column conduit connectors details show

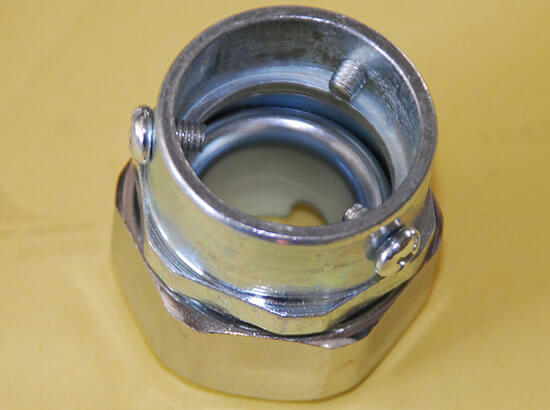

three column conduit connectors details show

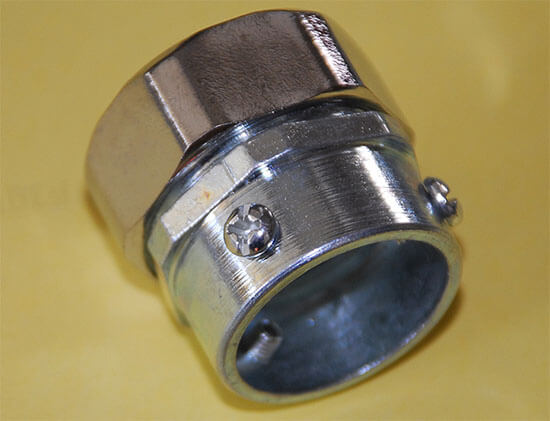

three column conduit connectors details show
Size Chart:
|
Part No.
|
Matched Flexible Conduit ID
|
Matched Conduit Pipe
|
||
|
inch
|
mm
|
OD*Thickness
|
OD*Thickness
|
|
|
FG-DPSZSJ-12
|
3/8″
|
12
|
17.00*2.25
|
15.87*1.60
|
|
FG-DPSZSJ-15
|
1/2″
|
15
|
21.25*2.75
|
19.05*1.80
|
|
FG-DPSZSJ-20
|
3/4″
|
20
|
26.75*2.75
|
25.40*1.80
|
|
FG-DPSZSJ-25
|
1″
|
25
|
33.50*3.25
|
31.75*1.80
|
|
FG-DPSZSJ-32
|
1-1/4″
|
32
|
42.25*3.25
|
38.10*1.80
|
|
FG-DPSZSJ-38
|
1-1/2″
|
38
|
48.00*3.50
|
50.80*2.00
|
|
FG-DPSZSJ-51
|
2″
|
51
|
60.00*3.50
|
63.50*2.50
|
|
FG-DPSZSJ-64
|
2-1/2″
|
64
|
75.50*3.75
|
76.20*3.20
|
|
FG-DPSZSJ-75
|
3″
|
75
|
88.50*4.00
|
|
|
FG-DPSZSJ-100
|
4″
|
100
|
114.0*4.00
|
|
|
FG-DPSZSJ-125
|
5″
|
125
|
140.0*4.50
|
|
|
FG-DPSZSJ-150
|
6″
|
150
|
165.0*4.50
|
|
|
FG-DPSZSJ-200
|
8″
|
200
|
||
Custom Service:
Three column conduit connectors custom service is workable for us. Like materials, packing quantity, packages, logo etc.
