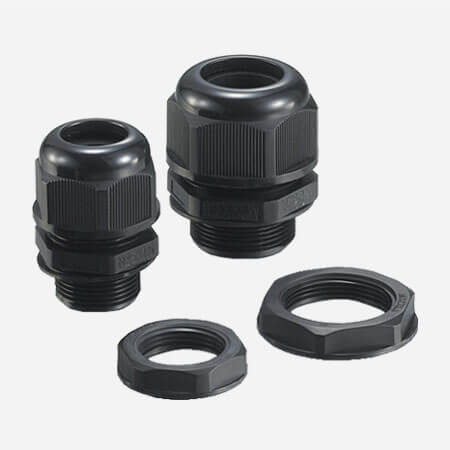

Waterproof Cable Gland
- PRODUCT DETAIL
Usage:
Waterproof cable gland can hold cable firmly and have a wider cable range. They are widely used in wire and cable managements. And it can also resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
Structure:

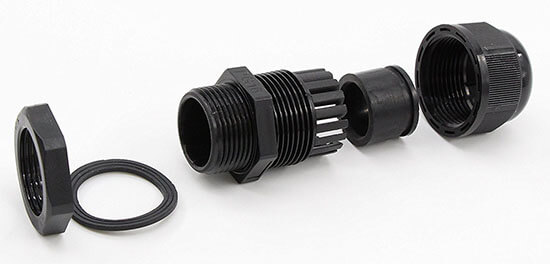

Waterproof cable gland structure
Size Chart:
Metric Thread
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
M8*1.25
|
FG-NCG-M8-4.8
|
2-4.8
|
8
|
7.5
|
12/13
|
|
M10*1.5
|
FG-NCG-M10-6
|
3-6
|
10
|
8
|
15/13
|
|
M12*1.5
|
FG-NCG-M12S-6
|
3-6.5
|
12
|
8.5
|
18/15
|
|
FG-NCG-M12SL-6
|
3-6.5
|
12
|
15
|
18/15
|
|
|
FG-NCG-M12-7
|
4-8
|
12
|
8.4
|
18/19
|
|
|
FG-NCG-M12L-7
|
4-8
|
12
|
15
|
18/19
|
|
|
M16*1.5
|
FG-NCG-M16S-8
|
4-8
|
16
|
10
|
22/19
|
|
FG-NCG-M16SL-8
|
4-8
|
16
|
15
|
22/19
|
|
|
FG-NCG-M16-10
|
5-10
|
16
|
10
|
22/22
|
|
|
FG-NCG-M16L-10
|
5-10
|
16
|
15
|
22/22
|
|
|
M18*1.5
|
FG-NCG-M18-10
|
5-10
|
18
|
10
|
24/22
|
|
FG-NCG-M18L-10
|
5-10
|
18
|
15
|
24/22
|
|
|
M20*1.5
|
FG-NCG-M20M-10
|
5-10
|
20
|
10
|
27/22
|
|
FG-NCG-M20S-12.5
|
6-12.5
|
20
|
10
|
27/24
|
|
|
FG-NCG-M20SL-12.5
|
6-12.5
|
20
|
15
|
27/24
|
|
|
FG-NCG-M20-13.5
|
8.5-14
|
20
|
11
|
27/27
|
|
|
FG-NCG-M20L-13.5
|
8.5-14
|
20
|
15
|
27/27
|
|
|
M22*1.5
|
FG-NCG-M22-13.5
|
8.5-14
|
22
|
11
|
30/27
|
|
M25*1.5
|
FG-NCG-M25S-14
|
8.5-14
|
25
|
11.6
|
33/27
|
|
FG-NCG-M25-18
|
12.5-18
|
25
|
11.6
|
33/33
|
|
|
FG-NCG-M25L-18
|
12.5-18
|
25
|
15
|
33/33
|
|
|
M32*1.5
|
FG-NCG-M32-25
|
17-25
|
32
|
15
|
41/42
|
|
M36*1.5
|
FG-NCG-M36-25
|
17-25
|
36
|
12
|
45/42
|
|
M40*1.5
|
FG-NCG-M40-31
|
23-32
|
40
|
15
|
50/52
|
|
M50*1.5
|
FG-NCG-M50-41
|
30-41
|
50
|
15
|
62/62
|
|
M63*1.5
|
FG-NCG-M63-45
|
35-45
|
63
|
18
|
75/65
|
PG Thread
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
PG7
|
FG-NCG-PG7S-6
|
3-6.5
|
12.5
|
8
|
17/15
|
|
FG-NCG-PG7SL-6
|
3-6.5
|
12.5
|
15
|
17/15
|
|
|
FG-NCG-PG7-7
|
4-8
|
12.5
|
8
|
17/19
|
|
|
PG9
|
FG-NCG-PG9-7.5
|
4-8
|
15.2
|
8.2
|
22/19
|
|
FG-NCG-PG9L-7.5
|
4-8
|
15.2
|
15
|
22/19
|
|
|
PG11
|
FG-NCG-PG11-10
|
5-10
|
18.6
|
10
|
24/22
|
|
FG-NCG-PG11L-10
|
5-10
|
18.6
|
15
|
24/22
|
|
|
PG13.5
|
FG-NCG-PG13.5-12.5
|
6-12.5
|
20.4
|
10
|
27/24
|
|
FG-NCG-PG13.5L-12.5
|
6-12.5
|
20.4
|
15
|
27/24
|
|
|
PG16
|
FG-NCG-PG16-14
|
8.5-14
|
22.5
|
10.8
|
30/27
|
|
FG-NCG-PG16L-14
|
8.5-14
|
22.5
|
15
|
30/27
|
|
|
PG19
|
FG-NCG-PG19-14
|
8.5-14
|
24
|
11
|
30/27
|
|
PG21
|
FG-NCG-PG21-17.5
|
12.5-18
|
28.3
|
12
|
36/33
|
|
FG-NCG-PG21L-17.5
|
12.5-18
|
28.3
|
15
|
36/33
|
|
|
PG25
|
FG-NCG-PG25-20
|
14-20
|
30
|
13
|
36/37
|
|
PG29
|
FG-NCG-PG29-25
|
17-25
|
37
|
12
|
46/41
|
|
PG36
|
FG-NCG-PG36-31
|
24-32
|
47
|
15
|
57/52
|
|
PG42
|
FG-NCG-PG42-41
|
30-41
|
54
|
15
|
64/62
|
|
PG48
|
FG-NCG-PG48-45
|
35-45
|
59.3
|
18.2
|
70/65
|
G(PF) Thread
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
G(PF)1/4″
|
FG-NCG-G1/4-5
|
3-5.3
|
13.157
|
8.5
|
19/19
|
|
FG-NCG-G1/4-8
|
4-8
|
13.157
|
8.5
|
19/19
|
|
|
G(PF)3/8″
|
FG-NCG-G3/8-7
|
3-7
|
16.662
|
10
|
22/22
|
|
FG-NCG-G3/8-10
|
5-10
|
16.662
|
10
|
22/22
|
|
|
G(PF)1/2″
|
FG-NCG-G1/2-9
|
5-9
|
20.955
|
10
|
27/24
|
|
FG-NCG-G1/2-12.5
|
6-12.5
|
20.955
|
10
|
27/24
|
|
|
G(PF)3/4″
|
FG-NCG-G3/4-13
|
7-13
|
26.441
|
12
|
36/33
|
|
FG-NCG-G3/4-17.5
|
12.5-18
|
26.441
|
12
|
36/33
|
|
|
G(PF)1″
|
FG-NCG-G1-17.5
|
13-17.5
|
33.249
|
15
|
46/41
|
|
FG-NCG-G1-25
|
17-25
|
33.249
|
15
|
46/41
|
|
|
G(PF)1-1/4″
|
FG-NCG-G1-1/4-25.5
|
17-25.5
|
41.910
|
15
|
57/52
|
|
FG-NCG-G1-1/4-31
|
24-32
|
41.910
|
15
|
57/52
|
|
|
G(PF)1-1/2″
|
FG-NCG-G1-1/2-32
|
25-32
|
48.000
|
16
|
60/62
|
|
FG-NCG-G1-1/2-41
|
30-41
|
48.000
|
16
|
60/62
|
NPT Thread
|
Thread
|
Part No.
|
Cable Range(mm)
|
Thread OD(mm)
|
Thread Length(mm)
|
Spanner Size(mm)
|
|
3/8″
|
FG-NCG-NPT3/8-7
|
3-7
|
16.662
|
10
|
22
|
|
FG-NCG-NPT3/8-10
|
5-10
|
16.662
|
10
|
22
|
|
|
1/2″
|
FG-NCG-NPT1/2-9
|
5-9
|
20.955
|
10
|
24
|
|
FG-NCG-NPT1/2-13
|
6-12.5
|
20.955
|
10
|
24
|
|
|
3/4″
|
FG-NCG-NPT3/4-13
|
7-13
|
26.441
|
15
|
33
|
|
FG-NCG-NPT3/4-18
|
12.5-18
|
26.441
|
15
|
33
|
|
|
1″
|
FG-NCG-NPT1-17.5
|
13-17.5
|
33.249
|
17
|
41
|
|
FG-NCG-NPT1-25
|
17-25
|
33.249
|
17
|
41
|
|
|
1-1/4″
|
FG-NCG-NPT1-1/4-25.5
|
17-25.5
|
41.910
|
17
|
52
|
|
FG-NCG-NPT1-1/4-31
|
24-32
|
41.910
|
17
|
52
|
Custom Service:
Waterproof cable gland custom service is workable for us. Like colors, packing quantity, packages, logo etc.
