Wire Loom Tee Fittings
- PRODUCT DETAIL
Usage:
Wire loom tee fittings are widely used in wire and cable protection industry, to fix and hold the plastic flexible conduit. Wire loom tee fittings can be opened and fix three sizes of flexible plastic conduit.
Product Show:

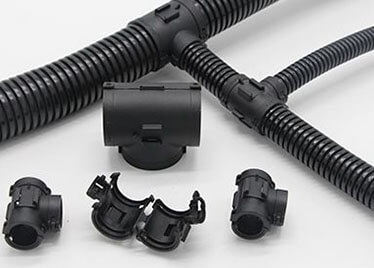

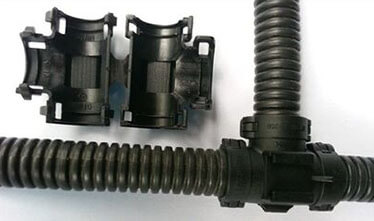

wire loom tee fittings show

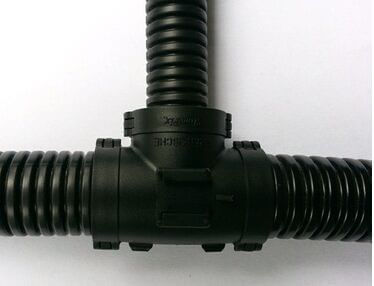

wire loom tee fittings show

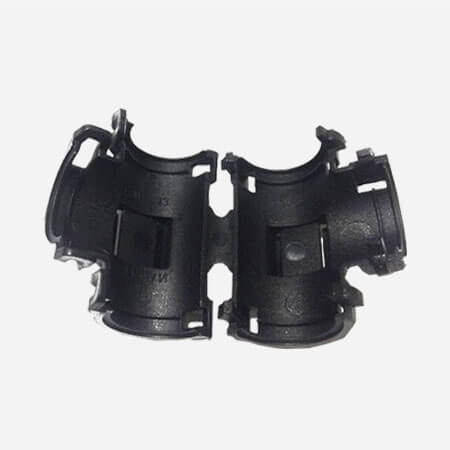

wire loom tee fittings show
Size Chart:
|
Part No.
|

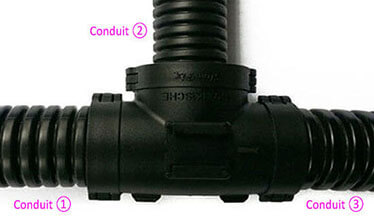

Left Conduit①
|
Middle Conduit②
|
Right Conduit③
|
|||
|
Inch
|
I.D.*O.D.(mm) |
Inch Size
|
I.D.*O.D.(mm) |
Inch Size
|
I.D.*O.D.(mm) | |
| WLF7/7/7 | 1/8″ | 4.5*7.0 | 1/8″ | 4.5*7.0 | 1/8″ | 4.5*7.0 |
| WLF10/7/7 | 1/4″ | 7.0*10.0 | 1/8″ | 4.5*7.0 | 1/8″ | 4.5*7.0 |
| WLF10/7/10 | 1/8″ | 4.5*7.0 | 1/4″ | 7.0*10.0 | ||
| WLF10/10/10 | 1/4″ | 7.0*10.0 | 1/4″ | 7.0*10.0 | ||
| WLF13/7/10 | 3/8″ | 10.0*13.0 | 1/8″ | 4.5*7.0 | 1/4″ | 7.0*10.0 |
| WLF13/10/13 | 1/4″ | 7.0*10.0 | 3/8″ | 10.0*13.0 | ||
| WLF13/13/13 | 3/8″ | 10.0*13.0 | 3/8″ | 10.0*13.0 | ||
| WLF16/10/10 | 1/2″ | 12.0*16.0 | 1/4″ | 7.0*10.0 | 1/4″ | 7.0*10.0 |
| WLF16/10/16 | 1/4″ | 7.0*10.0 | 1/2″ | 12.0*16.0 | ||
| WLF16/13/13 | 3/8″ | 10.0*13.0 | 3/8″ | 10.0*13.0 | ||
| WLF16/13/16 | 3/8″ | 10.0*13.0 | 1/2″ | 12.0*16.0 | ||
| WLF16/16/16 | 1/2″ | 12.0*16.0 | 1/2″ | 12.0*16.0 | ||
| WLF21/10/16 | 5/8″ | 17.0*21.0 | 1/4″ | 7.0*10.0 | 1/2″ | 12.0*16.0 |
| WLF21/10/21 | 1/4″ | 7.0*10.0 | 5/8″ | 17.0*21.0 | ||
| WLF21/13/16 | 3/8″ | 10.0*13.0 | 1/2″ | 12.0*16.0 | ||
| WLF21/13/21 | 3/8″ | 10.0*13.0 | 5/8″ | 17.0*21.0 | ||
| WLF21/16/16 | 1/2″ | 12.0*16.0 | 1/2″ | 12.0*16.0 | ||
| WLF21/16/21 | 1/2″ | 12.0*16.0 | 5/8″ | 17.0*21.0 | ||
| WLF21/21/13 | 5/8″ | 17.0*21.0 | 3/8″ | 10.0*13.0 | ||
| WLF21/21/16 | 5/8″ | 17.0*21.0 | 1/2″ | 12.0*16.0 | ||
| WLF21/21/21 | 5/8″ | 17.0*21.0 | 5/8″ | 17.0*21.0 | ||
| WLF25/10/21 | 3/4″ | 20.0*25.0 | 1/4″ | 7.0*10.0 | 5/8″ | 17.0*21.0 |
| WLF25/10/25 | 1/4″ | 7.0*10.0 | 3/4″ | 20.0*25.0 | ||
| WLF25/13/13 | 3/8″ | 10.0*13.0 | 3/8″ | 10.0*13.0 | ||
| WLF25/13/21 | 3/8″ | 10.0*13.0 | 5/8″ | 17.0*21.0 | ||
| WLF25/13/25 | 3/8″ | 10.0*13.0 | 3/4″ | 20.0*25.0 | ||
| WLF25/16/21 | 1/2″ | 12.0*16.0 | 5/8″ | 17.0*21.0 | ||
| WLF25/16/25 | 1/2″ | 12.0*16.0 | 3/4″ | 20.0*25.0 | ||
| WLF25/21/16 | 5/8″ | 17.0*21.0 | 1/2″ | 12.0*16.0 | ||
| WLF25/21/21 | 5/8″ | 17.0*21.0 | 5/8″ | 17.0*21.0 | ||
| WLF25/25/21 | 3/4″ | 20.0*25.0 | 5/8″ | 17.0*21.0 | ||
| WLF25/25/25 | 3/4″ | 20.0*25.0 | 3/4″ | 20.0*25.0 | ||
| WLF28/25/25 | 7/8″ | 23.0*28.5 | 3/4″ | 20.0*25.0 | 3/4″ | 20.0*25.0 |
| WLF28/28/28 | 7/8″ | 23.0*28.5 | 7/8″ | 23.0*28.5 | ||
| WLF34/21/21 | 1″ | 29.0*34.5 | 5/8″ | 17.0*21.0 | 5/8″ | 17.0*21.0 |
| WLF34/21/34 | 5/8″ | 17.0*21.0 | 1″ | 29.0*34.5 | ||
| WLF34/34/34 | 1″ | 29.0*34.5 | 1″ | 29.0*34.5 | ||
Custom Service:
Wire loom tee fittings custom service is workable for us. Like color, materials, packing quantity, packages, logo etc.
